Make us your preferred Brass union pipe elbow manufacturer in India.
We are committed to being your preferred supplier of 90 degree union elbow
Table of content
| Types | NPT, ISO/BP, SAE/MS, AN, weld ends |
| Angle | 90° Elbow |
| Size Range | 6 – 25 mm |
| Pressure Ratings | Up to 11 000 psig (760 bar), Medium-Pressure – Up to 20 000 psig (1378 bar), High-Pressure – Up to 60 000 psig (4134 bar). |
| Temperature Ratings | -50°C to +400°C |
| Thread | Thread BSPT, UNF, NPT, BSP |
| Media | Water / Air / Oil |
Bulkhead Elbow
brass union elbow
90 degree union elbow
union 90 degree elbow
union pipe elbow
union flare elbow
| Stainless Steel union flare elbow |
|
| Duplex / Super Duplex union pipe elbow |
|
| Titanium union 90 degree elbow |
|
| Hastelloy 90 degree union elbow |
|
| Nickel Alloys union elbow |
|
| Inconel Bulkhead Elbow |
|
Discover our extensive range of union 90 degree elbow
- Power generation
- Textile industry
- Brewing equipment
- Industrial machinery
- Construction and architecture
Stay updated with the latest union pipe elbow price list and leverage our cost-effective solutions
- Pitting Resistance Test
- Micro and Macro Test
- Hardness Test
- Flaring Test
- IGC Test
- Flattening Test
- Chemical Analysis

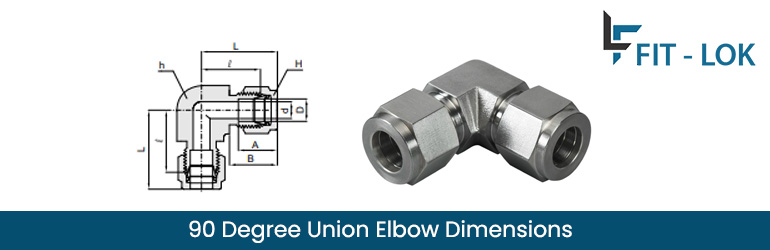

| Tube OD D | Width across flat (in.) | d Min. | B | A | l | L | ||
|---|---|---|---|---|---|---|---|---|
| in. | mm | h | H | |||||
| 1/16 | 1.58 | 3/8 | 5/16 | 1.3 | 10.9 | 8.6 | 14.0 | 17.9 |
| 1/8 | 3.17 | 3/8 | 7/16 | 2.3 | 15.2 | 12.7 | 15.7 | 22.4 |
| 3/16 | 4.76 | 1/2 | 1/2 | 3.0 | 16.0 | 13.7 | 17.8 | 24.4 |
| 1/4 | 6.35 | 1/2 | 9/16 | 4.8 | 17.8 | 15.2 | 19.6 | 26.9 |
| 5/16 | 7.93 | 9/16 | 5/8 | 6.3 | 18.5 | 16.3 | 21.3 | 28.7 |
| 3/8 | 9.52 | 5/8 | 11/16 | 7.0 | 19.3 | 16.8 | 23.1 | 30.5 |
| 1/2 | 12.70 | 13/16 | 7/8 | 10.4 | 21.8 | 22.9 | 25.9 | 36.1 |
| 5/8 | 15.87 | 15/16 | 1 | 12.7 | 21.8 | 24.4 | 28.7 | 38.8 |
| 3/4 | 19.05 | 1-1/16 | 1-1/8 | 15.7 | 21.8 | 24.4 | 29.7 | 39.9 |
| 7/8 | 22.22 | 1-3/16 | 1-1/4 | 18.3 | 21.8 | 25.9 | 34.5 | 44.7 |
| 1 | 25.40 | 1-3/8 | 1-1/2 | 22.3 | 26.4 | 31.2 | 36.8 | 49.0 |
| 1-1/4 | 31.75 | 1-11/16 | 1-7/8 | 28.0 | 38.9 | 41.1 | 44.5 | 66.5 |
| 1-1/2 | 38.10 | 2 | 2-1/4 | 34.0 | 45.2 | 50.0 | 50.8 | 78.0 |
| 2 | 50.80 | 2-3/4 | 3 | 46.0 | 62.7 | 67.6 | 69.8 | 107.2 |
We are dedicated to providing exceptional customer service as your preferred exporter of union flare elbow and bsp bulkhead elbow
Packaging of Union Elbows
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
