Twin Series Pipe Clamps Manufacturer in India
Twin Series tube clamps are designed to clamp two identical tubes to the Piping Systems.
Table of content
| Size | 6 MM od up to 50.8 MM OD |
| Base Plate Width | 33 to 73 MM |
| Standard | DIN 3015 Part III |
| Material | Plastic – PP / PA with Steel & stainless steel plates & bolts |
| Operating Pressure | Up to 400 bar |
| Reusability | High |
| Corrosion Resistance | > 1000 hours (Salt Spray Test, 316 SS) |
| Vibration Resistance | Excellent |
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| AISI 316 26.9mm Twin Pipe Clamp | US $3.54 per Piece | 13.00 AED per Piece | € 3.05 per Piece |
| SS 304 38mm Twin Tube Clamp | US $4.12 per piece | 15.13 AED per piece | € 3.55 per piece |

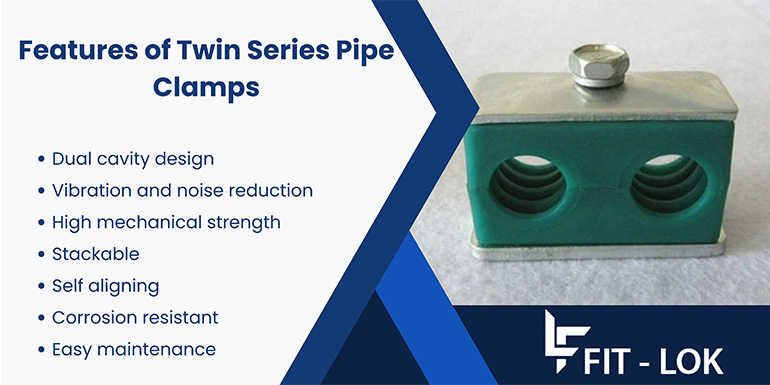

Twin Tube Clamp
Twin Series Pipe Clamps
Twin Series tube clamps
- Polypropylene : Colour Green
- Polyamide : Colour Black
- Thermoplastic Elastomer : Colour Black
- Aluminum : Colour Natural
| Component | Material |
|---|---|
| Twin Clamp Body | Polypropylene / Polyamide / Aluminum / Stainless Steel |
| Cover Plate | AISI 304 / 316 or Carbon Steel |
| Base Plate | Stainless Steel |
| Bolts | Stainless Steel A2 or A4 |
| Washers | Stainless Steel |
| Mounting Rail | Stainless Steel |
| Pipe Nom. Bore/Tube O.D. | Width | Length | Height |
|---|---|---|---|
| 1/8″ pipe | 1.18″ | 1.46″ | 1.36″ |
| 1/4″ pipe | 1.18″ | 1.46″ | 1.36″ |
| 3/8″ pipe | 1.18″ | 2.17″ | 1.42″ |
| 1/2″ pipe | 1.18″ | 2.76″ | 1.85″ |
| 3/4″ pipe | 1.18″ | 3.35″ | 2.05″ |
| 1″ pipe | 1.18″ | 4.33″ | 2.52″ |
| 1-1/4″ pipe | 1.18″ | 4.33″ | 2.52″ |
| 1/4″ tube | 1.18″ | 1.46″ | 1.36″ |
| 5/16″ tube | 1.18″ | 1.46″ | 1.36″ |
| 3/8″ tube | 1.18″ | 1.46″ | 1.36″ |
| 1/2″ tube | 1.18″ | 2.17″ | 1.42″ |
| 5/8″ tube | 1.18″ | 2.17″ | 1.42″ |
| 7/8″ tube | 1.18″ | 2.76″ | 1.85″ |
| 3/4″ tube | 1.18″ | 2.76″ | 1.85″ |
| 1″ tube | 1.18″ | 2.76″ | 1.85″ |
| 1-1/4″ tube | 1.18″ | 4.33″ | 2.52″ |
| 1-1/2″ tube | 1.18″ | 4.33″ | 2.52″ |
