One of the biggest threaded square tube inserts Manufacturer in India

Tube inserts

Tube inserts are used to protect and support tubes by capping or closing the ends of tubes. They come in a variety of forms and sizes, including square, round, and threaded, and are generally composed of plastic, metal, or rubber. Square and round tube inserts can be simply inserted into the open end of a tube to offer a polished look while also protecting the tube. When extra strength and stability are required, threaded inserts for metal tubes are employed. Internal threading on threaded square and round tube inserts ensures a secure and tight fit. Metal tube inserts, which are typically constructed of steel or aluminium, are often utilised in heavy-duty applications.

Purchase Pex pipe inserts at discounted price

PEX pipe inserts are meant to offer support and stability to PEX tubing and are extensively used in plumbing applications. Tube ends threaded insert is used for threading tubes in industrial or home applications. Tubing end cap plugs are used to seal off the end of a tube, preventing contamination or damage to the tube.

Tube Inserts specification list

Finishing Polished
Design Standard
Material SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, SUPER DUPLEX, INCONEL, DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L, TITANIUM & ALL OTHER ALLOYS
Size 6 to 30 mm ( Outer Diameter)
Packaging Type Box
Usage/Application Use To Insert Heat Exchanged Tube
Features Rust proof

Differnt types of tube inserts

Tube inserts

Tube inserts

Threaded square tube inserts

Threaded square tube inserts

Pex pipe inserts

Pex pipe inserts

Square Tube Inserts Dimensions

Colour Compatible Tube Gauge Material Finish Compatible Tube Size mm
Black 11 ABS Polished 18.4
Black 18 ABS Polished 28.6
Black 16 ABS Polished 31.8
Black 12 ABS Polished 38.1
Black 20 ABS Polished 38.1
Black 11 ABS Polished 50.8
Black 18 ABS Polished 50.8
Grey 10.0-14.0 LDPE Polished 44.4
Black 10.0-20.0 LDPE Polished 19.0
Black 12.0-20.0 LDPE Polished 25.4
Black 1.0-3.0 LDPE Polished 45.0
Black 12.0-20.0 LDPE Textured 16.0
Black 1.0-2.5 LDPE Textured 25.0
Black 16 ABS Polished 18.4
Blue 12.0-20.0 LDPE Textured 20.0
Grey 1.5-2.0 LDPE Textured 16.0
Black 1.0-2.0 LDPE Textured 18
White 1.0-3.5 LDPE Textured 22
Grey 1.5-2.0 LDPE Textured 25
Black 1.5-2.0 LDPE Textured 30
Black 18 ABS Polished 38.1
Black 16 ABS Polished 44.5
Black 16 ABS Polished 50.8
Black 6 LDPE Polished 127
Black 12.0-20.0 LDPE Polished 16.0

Threaded tube inserts price

Product Price in USD Price in Dirham Price in Euro
25 x 25 SS 304 Threaded Square Insert US $2.27 per Piece 8.34 AED per Piece € 1.97 per Piece
Threaded Square Ribbed Insert Nylon US $0.39 per piece 1.43 AED per piece € 0.34 per piece

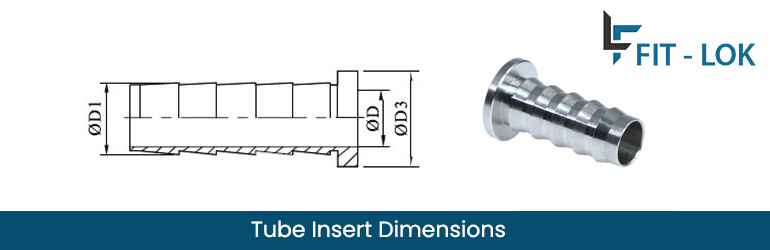

Tube Insert Dimensions

Tube Insert Dimensions

ØD3 (mm) ØD1 Tube (mm) ØD (mm)
4.76 3.17 2.3
6.35 3.17 2.3
6.35 4.32 2.7
6.35 4.76 3.1
7.93 3.17 2.3
7.93 4.76 3
7.93 6.35 4.65
9.52 4.76 3.1
9.52 6.35 4.65
12.7 6.35 4.65
12.7 9.52 7.8
15.87 9.52 7.8
15.87 12.7 11.1
19.05 12.7 11.1
19.05 15.87 14.2
25.4 19.05 17.5

Benefits of Steel tube inserts

Benefits of Steel tube inserts
