We take pride in being a leading cp titanium alloy flare fittings manufacturer in India
Manufacturer of medium pressure cp titanium bulkhead union up to 22,500 psi
Table of content
- Titanium tube fittings Specification
- Types of titanium compression fittings
- Ti alloy male connector chemical composition
- Pure titanium instrumentation fittings mechanical composition
- Titanium alloy ferrule fittings equivalent grade
- Size chart of Ti metal hydraulic fittings
- Cp titanium alloy flare fittings Pressure rating
- HSN Code of Titanium pneumatic fittings

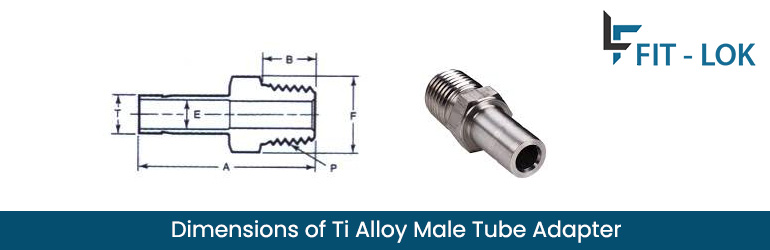

- Dimensions of Ti Alloy Male Tube Adapter
| Sizes | 1/8″ to 2″ |
|---|---|
| Connection Types |
|
| Types | Compression Tube Fittings / Double Ferrule Fittings / Instrumentation Fittings |
| Pressure Rating |
|
| Thread Standards | ASME B1.20.1 (NPT) / ISO 228/1 (BSPP) / ISO 7/1 (BSPT) |
| Test & Certification |
|
| Temperature Range | −196 °C to +400 °C |
| Threads |
|
| Ends |
|
titanium alloy ferrule fittings
Ti metal hydraulic fittings
cp titanium alloy flare fittings
commercially pure titanium single ferrule fittings
titanium steel double ferrule fittings
cpti titanium pneumatic fittings
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Our titanium compression tube fittings are engineered to provide secure connections for both instrumentation and industrial systems.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | 344 MPa | 275 MPa | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | 950 MPa | 880 MPa | 14 % |
| STANDARD | WNR | UNS |
|---|---|---|
| Titanium Gr. 2 | 3.7035 | R50400 |
| Titanium Gr. 5 | 3.7165 | N56400 |
Lowest rates guaranteed for Ti alloy instrumentation tube fittings from trusted suppliers in India
| O.D. in Inch | Diameter Nominal | Typical Threads In Inch | Decimal Equivalent |
|---|---|---|---|
| 5/16″ | 1/16 | 27 | 0.313 |
| 13/32″ | 1/8 | 27 | 0.405 |
| 27/32″ | 1/2 | 14 | 0.840 |
| 35/64″ | 1/4 | 18 | 0.540 |
| 43/64″ | 3/8 | 18 | 0.675 |
| 1 – 3/64″ | 3/4 | 14 | 1.050 |
| 1 – 21/32″ | 1 – 1/4 | 11 – 1/2 | 1.660 |
| 1 – 5/16″ | 1 | 11 – 1/2 | 1.315 |
| 1 – 29/32″ | 1 – 1/2 | 11 – 1/2 | 1.900 |
| 2 – 3/8″ | 2 | 11 – 1/2 | 2.375 |
| 2 – 7/8″ | 2 – 1/2 | 8 | 2.875 |
| 3 – 1/2″ | 3 | 8 | 3.500 |
| 4″ | 3 – 1/2 | 8 | 4.000 |
| 4 – 1/2″ | 4 | 8 | 4.500 |
| Size | Pressure |
|---|---|
| up to 1/2″ | 15 000 psig / 1040 bar |
| Over 1/2″ | 3600 psig / 250 bar |
| up to 9/16″ | 20 000 psig / 1380 bar |
| Over 9/16″ | 10 000 psig / 690 bar |
Wide range of cp titanium adapter fittings sizes and dimensions available
| HSN Code | 73072900 |
|---|
| TUBE OD IN | PIPE SIZE NPT | B | A | F | E |
|---|---|---|---|---|---|
| 1/4 | 1/8 | 10 | 32.8 | 12 | 4.6 |
| 3/8 | 3/8 | 14 | 40.6 | 17 | 7.1 |
| 1/2 | 1/4 | 13 | 43.4 | 14 | 10.0 |
| 5/8 | 1/2 | 17 | 53.1 | 27 | 12.7 |
| 3/4 | 1/2 | 17 | 52.8 | 27 | 15.0 |
| 1 | 3/4 | 19 | 60.7 | 32 | 20.0 |
