Count on us as a trusted TI CP grade 2 male connector manufacturer in India
Extensive range of grade 2 titanium bulkhead union sizes and dimensions available
Table of content
- Titanium grade 2 tube fittings Specification
- Types of ASTM B348 grade 2 compression fittings
- SB 348 gr 2 male connector chemical composition
- CP grade 2 titanium instrumentation fittings mechanical composition
- ASME SB 348 gr 2 ferrule fittings equivalent grade
- Physical Properties of Ti gr 2 hydraulic fittings
- Thermal Properties of Titanium grade 2 hydraulic fittings
- Grade 2 titanium flare fittings Price list
- Applications of DIN 3.7035 JIC Fittings

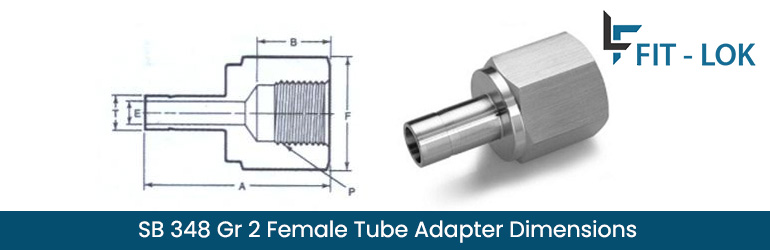

- SB 348 Gr 2 Female Tube Adapter Dimensions

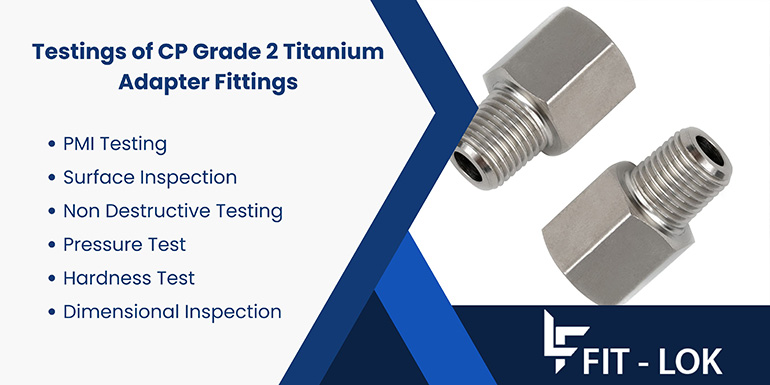

- Testings of CP grade 2 titanium Adapter Fittings
- ASME SB 348 Gr 2 Ferrule Fittings Pressure Limit
| Sizes | 1/8″ to 2″ |
|---|---|
| Standards | ASTM B338 / ASME SB338 |
| Connection Types |
|
| Temperature Range | −250 °C to +400 °C |
| Test & Certification |
|
| Pressure Rating |
|
| Thread Standards | ISO 228/1 (BSPP) / ASME B1.20.1 (NPT) / ISO 7/1 (BSPT) |
| Melting Point | 1665 °C |
| Threads |
|
| Ends |
|
CP grade 2 titanium instrumentation fittings
ASME SB 348 gr 2 ferrule fittings
titanium grade 2 hydraulic fittings
grade 2 titanium flare fittings
TI CP grade 2 single ferrule fittings
titanium cp grade 2 double ferrule fittings
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Source titanium grade 2 flare fittings at reasonable prices from the exporter.
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|
| Titanium Gr. 2 | 344 MPa | 275 MPa | 20 % |
| STANDARD | WNR | UNS |
|---|---|---|
| Titanium Grade 2 | 3.7035 | R50400 |
With our TI CP grade 2 single ferrule fittings, you can achieve optimal performance and durability in both instrumentation and industrial applications.
| Density | Melting point | Elastic modulus | Poisson’s ratio |
|---|---|---|---|
| 4.51 g/cm3 | 1660°C | 105 – 120 GPa | 0.34-0.40 |
| Properties | Metric |
|---|---|
| Thermal expansion co-efficient | 8.60 µm/m°C |
| Thermal conductivity | 21.97 W/mK |
Cost-effective titanium cp grade 2 double ferrule fittings solutions from trusted suppliers in India
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 1/8 in. Tube O.D. x 1/8 in. FNPT Ti Grade 2 Female Adapter | US $7.35 | 26.99 AED | € 6.37 |
| 3/16 in. Tube O.D. x 1/8 in. FNPT – Tube Female Adapter, Titanium Grade 2 | US $11.84 | 43.48 AED | € 10.26 |
- Petrochemical Industry
- Hydraulic Systems
- Offshore Applications
- High Temperature Systems
- Marine Industry
- Chemical Industry
| TUBE OD IN | PIPE SIZE NPT | B (mm) | A (mm) | F (mm) | E (mm) |
|---|---|---|---|---|---|
| 1/4 | 1/8 | 10 | 33.0 | 12 | 4.8 |
| 3/8 | 3/8 | 10 | 34.3 | 14 | 7.0 |
| 1/2 | 1/4 | 13 | 43.4 | 14 | 10.0 |
| 5/8 | 1/2 | 17 | 53.1 | 27 | 12.7 |
| 3/4 | 1/2 | 17 | 52.8 | 27 | 15.0 |
| 1 | 3/4 | 19 | 60.7 | 32 | 20.0 |
| Pressure Limit | upto 15000 PSI |
|---|
