Are you looking for Titanium grade 2 instrumentation ball valve Manufacturer in India

Titanium ball valve

Check Titanium high pressure ball valve Dimensions and Weight Chart

Table of content

Titanium ball valve specification

Size 1/4″ to 4″
Standards ASME B16.34 / API 608 / ISO 17292
Valve Type 2 Way / 3 Way
Bore Type Full Bore / Reduced Bore
Pressure Rating 3000 PSI / 6000 PSI / 10000 PSI / 15000 PSI
End Connections Socket Weld / Female / Male NPT / Double Ferrule Compression
Surface Finish Machined / Electropolished / Pickled
Flow Rate .93, 6.42, 2.34, 1.04, .70, 3.62, .87 Cv
Fire Safe Design API 607 / ISO 10497
Approvals
  • MSS SP-110
  • API-598
  • ANSI B16.11
  • ANSI B1.20.1
  • ANSI B16.34
  • NACE Certified

Titanium instrumentation ball valve chemical composition

Grade Ti C Fe H N O Al V
Ti Grade2 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max – –
Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min

Titanium alloy Panel Mounted Ball Valve Mechanical properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Equivalent grade of Titanium ball valves

STANDARD WNR UNS
Titanium Gr. 2 3.7035 R50400
Titanium Gr. 5 3.7165 N56400

Pressure Rating Of Titanium grade 2 ball valve

NPS PSIG
1/2 – 1-1/2 1000 PSIG (69 BARG)
2 800 PSIG (55 BARG)
3 600 PSIG (41 BARG)
4-5 500 PSIG (34 BARG)
6 300 PSIG (21 BARG)

Size Chart of Alloy gr 5 3 way ball valve

END CONNECTION SIZE ORIFICE A
(IN) (MM) (IN) (MM) (IN) (MM)
1/8 3.17 0.09 2.4 1.01 25.5
3/16 4.76 0.13 3.2 1.1 28
1/4 6.35 0.19 4.8 1.2 30
3/8 9.52 0.28 7.1 1.45 36.5
1/2 12.7 0.41 10.3 1.74 44.2
0.12 3 0.09 2.4 1.01 25.5
0.24 6 0.19 4.8 1.2 30
0.31 8 0.19 4.8 1.23 31.2
0.39 10 0.28 7.1 1.45 36.5
0.47 12 0.41 10.3 1.74 44.2

Titanium ball valve Types

Titanium Grade 2 Hydraulic Ball Valves

Titanium Grade 2 Hydraulic Ball Valves

Titanium Grade 5 High Pressure Ball Valves

Titanium Grade 5 High Pressure Ball Valves

DIN 3.7035 Cryogenic Ball Valves

DIN 3.7035 Cryogenic Ball Valves

Titanium Compression Ball Valves

Titanium Compression Ball Valves

UNS R50400 Instrument Ball Valve

UNS R50400 Instrument Ball Valve

Ti Alloy Gr 2 Flow Control Ball Valves

Ti Alloy Gr 2 Flow Control Ball Valves

Material of Ti Gr 2 Instrumentation Ball Valve

Component Material
Body Titanium Grade 2 / Grade 5
End Connections
Ball
Stem (Shaft)
Body Seals FKM / PTFE
Seats PEEK / PTFE / PCTFE
Gland Nut Titanium Grade 2 / Grade 5

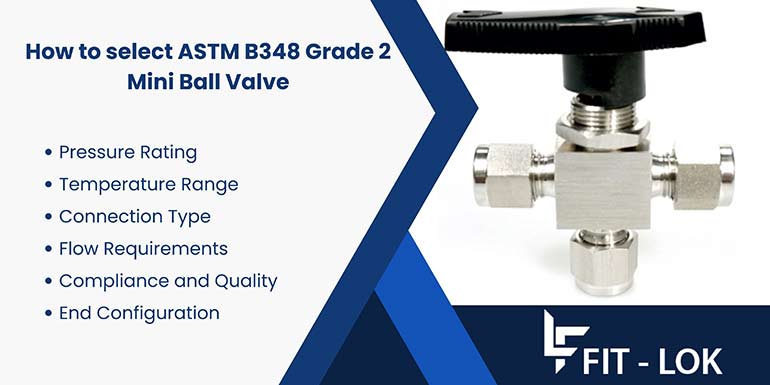

How to select ASTM B348 Grade 2 Mini Ball Valve?

How to select ASTM B348 Grade 2 Mini Ball Valve

Benefits of Class 600 Titanium Ball Valve

  • Compact and economical designs
  • Fast shut-off speeds
  • Long service life
  • Durable in high-pressure and temperature applications

Manufacturing standards of Titanium Compression Ball Valve

Design & Manufacture BS 1868
Pressure & Temperature ASME B16.34
Flange Dimensions as per ASME B16.5
Visual Inspection accordance to MSS SP-55
Test & Inspection accordance to API 6D / API 598
Face to Face according to ASME B16.10
Marking accordance to MSS SP-25

SB 348 Gr 2 Flow Control Ball Valves categories

Operation Design End Connection Flow of circuit
  • Electric
  • Manual
  • Pneumatic
  • Single Piece Design
  • Two Piece Design
  • Three Piece Design
  • Flanged End
  • TC End
  • Screwed End
  • 2 Way (L type)
  • 3 Way (T type)

Application of Cp Grade 2 Titanium Ball Valve

  • Fertilizers Industry
  • Paper & pulp Industries
  • Refineries
  • Engineering & Fabrication Units
  • Water Treatment Plants

Manufacturing standards of Titanium Compression Ball Valve

Face to Face according to ASME B16.10
Pressure & Temperature ASME B16.34
Visual Inspection accordance to MSS SP-55
Design & Manufacture BS 1868/td>
Test & Inspection accordance to API 6D / API 598
Flange Dimensions as per ASME B16.5
Marking accordance to MSS SP-25
