One of the biggest Stainless Steel Straight Through QRC Manufacturer in India
Through type QRC (Quick Release Coupling) enables for the quick and easy connection and disengagement of hydraulic hoses. It has a straight through design that allows for a high flow rate and low pressure drop.
Straight through quick release couplings are a form of QRC with a straight through design for maximum flow velocity and low pressure drop. Brass straight through coupling is a type of QRC made of brass that has excellent corrosion resistance and durability. It is often utilised in applications that require a low-cost, high-performance solution.
Check Sizes and Dimensions of Straight Through Quick Release Coupling
Get high performance Straight Through Quick Release Couplings (QRC) at the best price from Fit-Lok, a company known for producing quality-tested goods utilising cutting-edge production technology in accordance with international industry standards. At Fit-Lok, we offer these Straight Through Quick Release Couplings (QRC) with optimal functionality for your specified applications.
Table of content
- Through Type Qrc Specification
- Stainless Steel Straight Through QRC Types
- Through Type Qrc price
- Straight Through QRC Male Dimensions
- Stainless Steel Cushion Clamps Features
- Through Quick Release Disconnect Coupling Temperature Range
- Application of Straight Through Quick Release Coupling
- Features of Straight Through QRC
| Sizes | 1/4″ to 2″ |
| Working Pressure | Up to 300 bar |
| Thread | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| Type | Through Type |
| Temperature Range | -25°C to +120°C |
| Standards | ISO 7241-1 Series B / ISO 5675 |
| Flow Path | Full flow |
| Seals | Nitrile, Viton, EPDM |
Through Type Qrc
Stainless Steel Straight Through QRC
Straight Through Quick Release Coupling
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| 1/2 BSP Straight Through Qrc | US $5.96 per Piece | 21.89 AED per Piece | € 5.13 per Piece |
| Straight Through Quick Release Coupling 1/4″ BSPP | US $3.12 per piece | 11.46 AED per piece | € 2.68 per piece |

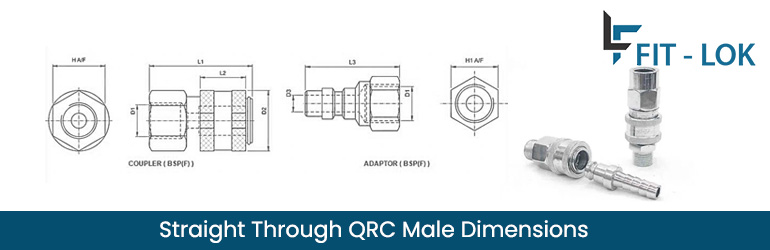

| QRC SIZE (D1) | D3 | D2 | L1 | L3 | L2 | H | H1 |
|---|---|---|---|---|---|---|---|
| 1/8″ NPT(F) | 5 | 17 | 29 | 30 | 16 | 16 A/F | 14 A/F |
| 1/4″ NPT(F) | 6.5 | 22 | 35 | 32 | 16 | 19 A/F | 16 A/F |
| 3/8″ NPT(F) | 7 | 25 | 42 | 38 | 21 | 22 A/F | 19 A/F |
| 1/2″ NPT(F) | 11 | 32 | 46 | 45 | 25 | 28 A/F | 25 A/F |
| 3/4″ NPT(F) | 15 | 35 | 48 | 50 | 26 | 32 A/F | 32 A/F |
| 1″ NPT(F) | 19 | 42 | 50 | 50 | 26 | 38 A/F | 38 A/F |
| 1 1/4″ NPT(F) | 24 | 55 | 66 | 65 | 29 | 50 A/F | 45 A/F |
| 1 1/2″ NPT(F) | 31 | 60 | 61 | 61 | 31 | 55 A/F | 55 A/F |
| 2″ NPT(F) | 48 | 84 | 74 | 74 | 34 | 75 A/F | 65 A/F |
| Max. working pressure connected | 250 bar |
|---|---|
| Min. burst pressure connected | 1000 bar |
| Min. burst pressure disconnected | 880 bar |
| Temperature Range | -30°C – +100°C |
|---|
- Pneumatic tools
- Chemical transfer
- Hydraulic lines
- Petroleum Industry
- Agriculture Industry
