We are trusted Alloy 2507 BSPT Couplings manufacturer in India
Discover the impact strength and flexural modulus properties of our en 1.4410 high pressure compression fittings for reliable functionality.
Table of content

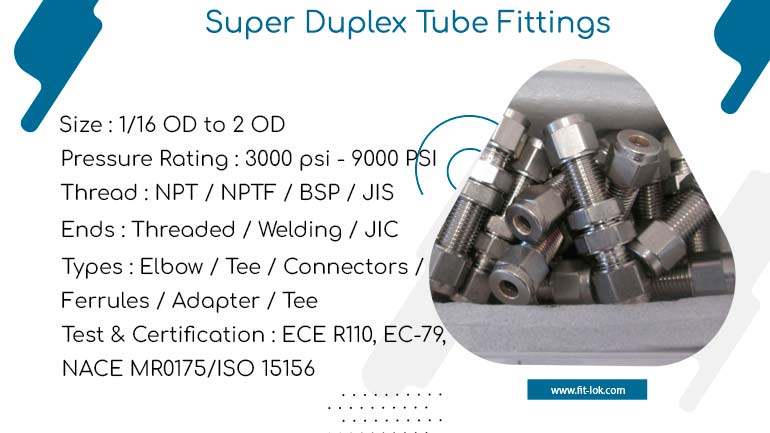

- Super duplex 2507 tube fittings Specification
- Types of alloy 2507 compression fittings
- 2507 super duplex male connector chemical composition
- super duplex 1.4501 instrumentation fittings mechanical composition
- EN 1.4410 high pressure compression fittings equivalent grade
- Price list of Super duplex 2507 tube fittings
- Alternate alloy of 25cr super duplex ferrule fittings
- 2507 stainless steel hydraulic fittings Pressure rating

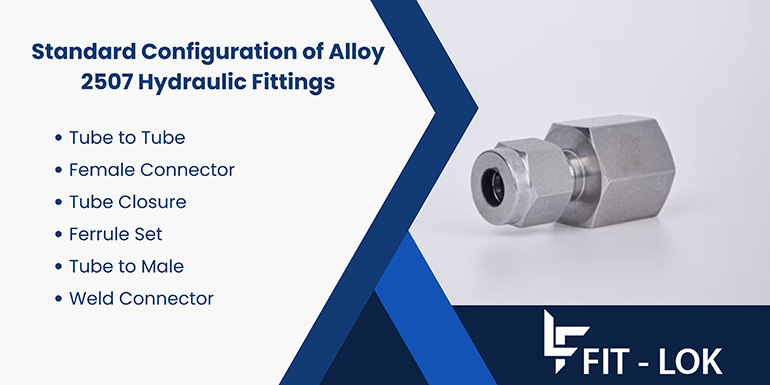

- Standard Configuration of Alloy 2507 Hydraulic fittings
- Dimensions of Alloy 2507 Female Run Tee
- Benefits Of 1.4410 BSPT Couplings
- Temperature Range of Super duplex 2507 flare fittings
- 25cr super duplex Bulkhead Reducer HSN Code
| Sizes | 1/8″ to 2″ |
|---|---|
| Standards | ASTM A182 / ASME SA182 |
| Connection Types |
|
| PREN | ≥ 40 – 42 |
| Temperature Range | −50 °C to +300 °C |
| Threads |
|
| Surface Finish |
|
| Thread Standards | ASME B1.20.1 (NPT) / ISO 228/1 (BSPP) / ISO 7/1 (BSPT) |
| Pressure Rating |
|
| Ends |
|
| Test & Certification |
|
2507 super duplex male connector
super duplex 1.4501 instrumentation fittings
en 1.4410 high pressure compression fittings
25cr super duplex ferrule fittings
2507 stainless steel hydraulic fittings
1.4507 super duplex flare fittings
| C | Si | Mn | S | P | Mo | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 0.030 max | 0.80 max | 1.20 max | 0.020 max | 0.035 max | 3.00 – 5.00 | 24.00 – 26.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Count on us for high-quality 25cr super duplex ferrule fittings that are suitable for both instrumentation and industrial purposes.
| Tensile Strength, ksi | Yield Strength, ksi Minimum | Elongation Min. | Hardness (HRB) |
|---|---|---|---|
| 116 | 80 | 15% | 310 |
| Standard | UNS | WNR |
|---|---|---|
| Super Duplex 2507 | S32750 | 1.4410 |
You can purchase 2507 stainless steel hydraulic fittings from the supplier at reasonable prices.
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 1/16 in. Tube O.D. Super Duplex 2507 Union Tee | US $16.94 | 62.21 AED | € 14.69 |
| 1/4 in. Tube O.D. SAF 2507 Union Tee | US $20.15 | 74.00 AED | € 17.47 |
| Grade | Feature |
|---|---|
| SS 904L | Better formability |
| Duplex 2205 | High corrosion resistance |
| 6%Mo | Higher corrosion resistance |
| SS 316L | Availability and lower cost |
Trusted manufacturer of high pressure super duplex 2507 flare fittings
| Tube OD | Wall Thickness | Max Working Pressure (psi / bar) |
|---|---|---|
| 1/8″ | 0.028″ | 10,000 psi |
| 1/4″ | 0.065″ | 8,000–9,500 psi |
| 3/8″ | 0.083″ | 6,000–8,000 psi |
| 1/2″ | 0.109″ | 4,500–6,000 psi |
| TUBE OD IN | PIPE SIZE NPT | A (mm) | F (mm) | D (mm) | E (mm) | H (mm) | G (mm) | K (mm) | J (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 1/8 | 27.0 | 14 | 15.2 | 5 | 19.6 | 14 | 46.0 | 38.6 |
| 3/8 | 1/8 | 30.5 | 17 | 16.8 | 7 | 23.1 | 17 | 50.3 | 42.9 |
| 1/2 | 1/8 | 36.0 | 22 | 22.8 | 10 | 25.9 | 22 | 58.4 | 48.3 |
| 3/4 | 1/2 | 39.9 | 27 | 24.4 | 15 | 29.7 | 30 | 68.3 | 51.8 |
| 1 | 3/4 | 50.5 | 34 | 31.3 | 21 | 38.2 | 38 | 87.9 | 75.6 |
- Exceptional Corrosion Resistance
- High Strength
- Temperature Resistance
- Mechanical Reliability
- Hygienic & Clean
- Cost Effective in Long Term
| Temperature Range | -50° to 300° C |
|---|
| HSN Code | 72192190 |
|---|
