Biggest Manufacturer of Alloy 2507 instrumentation ball valve in India
Check Dimensions and Weight Chart of ASTM A890 grade 5a ball valve
Table of content
- Super duplex ball valve specification
- Alloy 2507 instrumentation ball valve chemical composition
- SAF 2507 Panel Mounted Ball Valve Mechanical properties
- Equivalent grade of UNS S32750 ball valves
- Working temperature Of Super duplex steel ball valve
- Size Chart of SDSS 2507 3 way ball valve
- Types of Super duplex ball valve
- Torque Chart of SDSS Ferrule Ball Valve
- Pressure & Temperature Limit of Alloy 2507 Instrument Ball Valve
- Material Of Construction of 25cr Super Duplex Compression Ball Valves

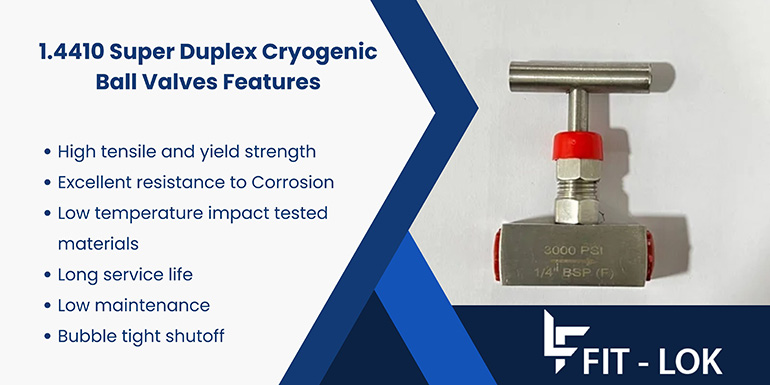

- 1.4410 Super Duplex Cryogenic Ball Valves Features
| Size | 1/4″ to 4″ |
| Valve Type | 2 Way / 3 Way |
| Standards | ASME B16.34 / API 608 / ISO 17292 |
| Pressure Rating | 3000 PSI / 6000 PSI / 10000 PSI / 15000 PSI |
| End Connections | Female / Male NPT / Socket Weld / Double Ferrule Compression |
| Bore Type | Full Bore / Reduced Bore |
| Fire Safe Design | API 607 / ISO 10497 |
| Surface Finish | Machined / Pickled / Electropolished |
| C | Si | Mn | S | P | Mo | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 0.030 max | 0.80 max | 1.20 max | 0.020 max | 0.035 max | 3.00 – 5.00 | 24.00 – 26.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Tensile Strength, ksi | Yield Strength, ksi Minimum | Elongation Min. | Hardness (HRB) |
|---|---|---|---|
| 116 | 80 | 15% | 310 |
| Standard | UNS | WNR |
|---|---|---|
| Super Duplex 2507 | S32750 | 1.4410 |
| Working temperature | -196°C to +250°C |
|---|
| Size | DN | Height (MM) | Length (MM) | Weight (KG) |
|---|---|---|---|---|
| 1/2″ | 12 | 66 | 75 | 0.63 |
| 3/4″ | 15 | 72 | 85 | 0.94 |
| 1″ | 20 | 77 | 100 | 1.39 |
| 1 ¼” | 25 | 92 | 122 | 2.91 |
| 1 ½” | 32 | 96 | 131 | 3.66 |
| 2″ | 40 | 107 | 158 | 6.31 |
| 2 ½” | 49 | 135 | 178 | 8.95 |
| 3″ | 60 | 147 | 202 | 13.11 |
| 4″ | 75 | 160 | 246 | 22.1 |
Super Duplex Hydraulic Ball Valves
SAF 2507 High Pressure Ball Valves
UNS S32750 Cryogenic Ball Valves
DIN 1.4410 Compression Ball Valves
Super Duplex 2507 Instrument Ball Valve
ASTM A276 Type S32750 Flow Control Ball Valves
| Size (in) | Cv | Torque (in-lbf) |
|---|---|---|
| 3/4 | 29 | 60 |
| 1/2 | 8 | 60 |
| 1 1/2 | 192 | 200 |
| 1 | 66 | 100 |
| 2 1/2 | 723 | 450 |
| 2 | 434 | 250 |
| 4 | 2100 | 1400 |
| 3 | 1124 | 1300 |
| 6 | 4700 | 4160 |
| Class | Pressure Rating |
|---|---|
| Class 2500 | 6000 psig / 414 bar |
| Class 4500 | 10000 psig / 689 bar |
| Component | Material |
|---|---|
| Body | Super Duplex 2507 |
| End Connections | |
| Ball | |
| Stem (Shaft) | |
| Seats | PEEK / PTFE / PCTFE |
| Body Seals | FKM / PTFE |
| Gland Nut | Super Duplex 2507 |
