Stainless Steel U Clamps

We are leading manufacturer of 316 SS Square U Clamp

Stainless Steel U Clamps specification

SS U clamp types

Stainless Steel U Clamps

316 SS Square U Clamp

SS U Clamps

Stainless Steel U Clamps Price List

Product	Price in USD	Price in Dirham	Price in Euro
SS 304 50NB x M10 U-Bolt Clamp	US $3.29 per Piece	12.08 AED per Piece	€ 2.83 per Piece
AISI 32NB x M8 U-Bolt Clamp	US $4.18 per piece	15.35 AED per piece	€ 3.60 per piece

Chemical properties of SS Square U Clamp

Grade	Ni	C	S	Mn	P	Si	Cr	Mo	N
304	8 – 10.5	0.08	0.03	2	0.045	0.75	18 – 20		0.1
316	10.0 – 14.0	0.035	0.03	2	0.045	0.75	16 – 18	2.0 – 3.0

SS U bolt clamps mechanical properties

Grade	Yield Strength (0.2%Offset)	Tensile Strength	Density	Melting Point
304	230 MPa	540 Mpa	8.0 g/cm3	1450 °C
316	205 MPa	515 MPa	8.0 g/cm3	1400 °C

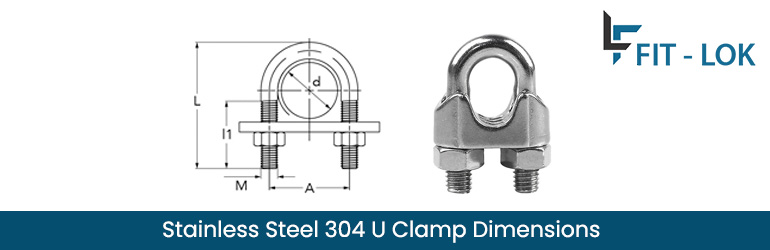

Stainless Steel 304 U Clamp Dimensions

DN	d	D	A	L	M	l1	Weight (kg)
15	25	21.3	35	65	10	35	0.068
20	30	26.9	40	70	10	40	0.075
25	38	33.7	48	76	10	40	0.094
32	46	42.4	56	86	10	50	0.095
40	52	48.3	62	92	10	50	0.103
50	64	60.3	76	109	12	50	0.178
65	82	76.1	94	125	12	50	0.21
80	94	88.9	106	138	12	50	0.229
100	120	114.3	136	171	16	60	0.53
125	148	139.7	164	191	16	60	0.611
150	176	168.3	192	217	16	60	0.695
175	202	193.7	218	249	16	60	0.797
200	228	219.1	248	283	20	70	1.391
250	282	273	302	334	20	70	1.693
300	332	323.9	352	385	20	70	1.94
350	378	355.6	402	435	24	70	3
400	428	406.4	452	487	24	70	3
500	530	508	554	589	24	70	4.26
600	630	609.6	654	695	24	100	5.08

Stainless steel u clamp size

NPS	Thread Size	Thread Length (mm)	Depth of U (mm)	Between Centres (mm)
1/2″	M6	30	48	28
3/4″	M6	30	53	34
1″	M6	30	60	41
1 1/4″	M10	30	67	54
1 1/2″	M10	35	85	60
2″	M10	35	95	75
2 1/2″	M12	55	124	90
3″	M12	50	126	102
4″	M12	50	144.5	131
5″	M12	50	182	156
6″	M12	50	210	182
8″	M16	50	252	240
10″	M16	50	318	292
12″	M16	50	363.6	343

SS 316 U Pipe Clamp Weight Chart

Application of AISI 304 U Clamps
