We are leading UNS S31000 Male Elbow manufacturer in India
Reliable supplier offering cost-effective SS 310S Double Ferrule Tube Fittings and UNS S31000 Tube Fittings solutions to meet your needs in India
Table of content
- Stainless Steel 310 Instrumentation Tube Fittings Specification
- Types of SS 310S Double Ferrule Tube Fittings
- UNS S31000 Tube Fittings chemical composition
- SS 310 Compression Fittings mechanical composition
- DIN 1.4845 Male Elbow equivalent grade
- Stainless Steel 310 Instrumentation Tube Fittings Price list
- Creep Properties of SUS 310S Bulk Head Female Connector
- Stainless Steel 310 Male Connector Pressure rating
- Melting Point of AISI 310 Adapter Fittings
- Dimensions of 310 SS Male Bulkhead Connector
- DIN 1.4845 Twin Ferrule Fittings Testing and Inspection
| Standards | ASTM A182 / ASME SA182 |
|---|---|
| Sizes | 1/8″ to 2″ |
| Connection Types |
|
| Temperature Range | −196°C to +1150°C |
| Surface Finish |
|
| Pressure Rating |
|
| Tube Size Range | 1/16″ to 2″ OD |
| Magnetic Properties | Non magnetic in annealed condition |
| Threads |
|
| Test & Certification |
|
| Thread Standards | ASME B1.20.1 (NPT) / ISO 228/1 (BSPP) / ISO 7/1 (BSPT) |
| Ends |
|
UNS S31000 Tube Fittings
SS 310 Compression Fittings
DIN 1.4845 Male Elbow
SUS 310S Bulk Head Female Connector
Stainless Steel 310 Male Connector
SS 310 Male Run Tee
| Grade | C | Si | Mn | S | P | Mo | Cr | N | Ni |
|---|---|---|---|---|---|---|---|---|---|
| SS 310 | 0.015 max | 0.15 max | 2.0 max | 0.015 max | 0.020 max | 0.10 max | 24.00 – 26.00 | 54.7 min | 19.00 – 21.00 |
Exporter of SS 310 Compression Fittings and DIN 1.4845 Male Elbow, ensuring easy installation that leads to substantial labor cost reduction
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
| STANDARD | WNR | JIS | UNS | GOST | BS | EN |
|---|---|---|---|---|---|---|
| SS 310 | 1.4841 | SUS 310 | S31000 | 20Ch25N20S2 | 310S24 | X15CrNi25-20 |
Find the perfect SUS 310S Bulk Head Female Connector and AISI 310S NPT Male Adapters dimensions and sizes to optimize performance in your projects
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 3/16 in. Tube O.D. x 1/8 in. FNPT 310 SS Female 90 Degree Elbow | US $11.26 | 41.35 AED | € 9.73 |
| 1/2 in. Tube O.D. x 1/4 in. FNPT AISI 310 Female 90 Degree Elbow | US $17.61 | 64.67 AED | € 15.22 |
| 1% Elongation1 for | Rupture2 for | ||||
|---|---|---|---|---|---|
| Temperature °C | 10,000 h N/mm2 | 1,000 h N/mm2 | 100,000 h N/mm2 | 10,000 h N/mm2 | 1,000 h N/mm2 |
| 600 | 90 | 100 | 80 | 130 | 170 |
| 700 | 30 | 45 | 18 | 40 | 80 |
| 800 | 10 | 18 | 7 | 18 | 35 |
| 900 | 4 | 10 | 3 | 8.5 | 15 |
Benefit from competitive rates on top-grade Stainless Steel 310 Male Connector and SS 310 Male Run Tee supplied by trusted vendors in India
| Sizes | Connection End | Typical Working Pressure |
|---|---|---|
| 1/8″-tube × 1/4″ NPT | Tube OD × Male NPT/BSP | 6,000 psi |
| 1/16″ tube | Tube to Male | Up to ~10,000 psi |
| >1″ | Male thread or socket-weld | ~2,000–3,000 psi |
| Melting Point | 1400-1450 °C |
|---|

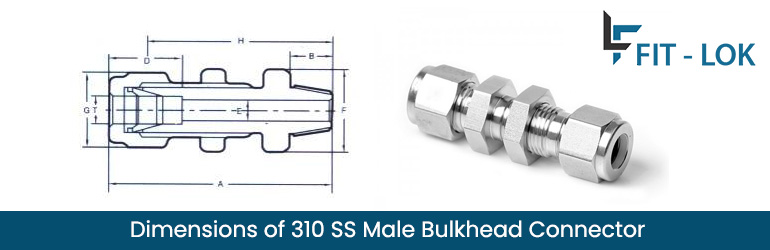

| TUBE SIZE O.D. | PIPE SIZE NPT | A (mm) | D (mm) | B (mm) | H (mm) | E (mm) | G (mm) | F (mm) | MAXPANEL THICKNESS | PANELHOLE SIZE |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 1/8 | 50.9 | 15.3 | 10 | 42.4 | 5 | 14 | 17 | 10.2 | 11.5 |
| 1/4 | 1/4 | 49.5 | 15.3 | 13 | 46.7 | 5 | 14 | 17 | 10.2 | 11.5 |
| 3/8 | 1/4 | 57.4 | 16.8 | 13 | 42.0 | 8 | 17 | 19 | 11.2 | 16.3 |
| 3/8 | 3/8 | 57.4 | 16.8 | 14 | 43.0 | 8 | 17 | 19 | 11.2 | 16.3 |
| 3/8 | 1/2 | 63.8 | 16.8 | 17 | 47.0 | 8 | 17 | 19 | 11.2 | 16.3 |
| 1/2 | 1/4 | 62.2 | 22.8 | 13 | 42.7 | 10 | 17 | 22 | 12.7 | 19.5 |
| 1/2 | 3/8 | 63.2 | 22.8 | 14 | 43.7 | 10 | 19 | 22 | 12.7 | 19.5 |
| 1/2 | 1/2 | 68.8 | 22.8 | 17 | 58.8 | 10 | 19 | 22 | 12.7 | 19.5 |
