Stainless steel qrc single check valve Manufacturer in India
Single check valve QRC (Quick Release Coupling) is a type of hydraulic coupling that enables for quick and easy connection and separation of hydraulic hoses. It is distinguished by a single check valve that prevents fluid backflow, ensuring a safe and leak-free connection.
Stainless steel QRC single check valve is a type of stainless steel QRC single check valve that provides exceptional corrosion resistance and longevity in tough situations. It is often utilised in applications where corrosion resistance is required.
We are leading exporter of Quick Disconnect Couplings Single Check Valve worldwide

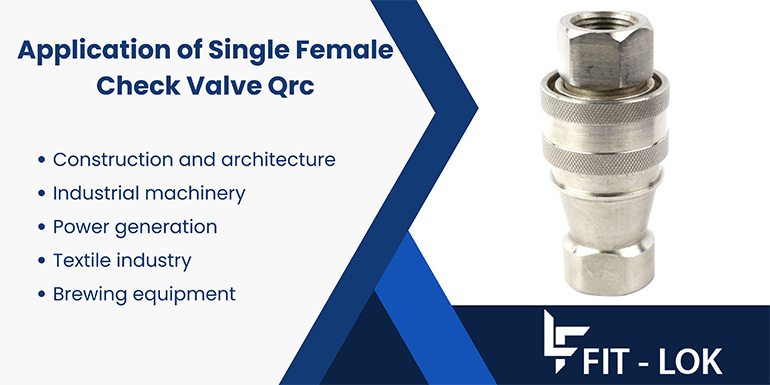

QRCs with a single check valve are commonly utilised in a variety of industries, including agriculture, construction, manufacturing, and transportation. Because we use ultramodern technology and high grade raw materials, the valves we make keep the best conceivable qualities. We supply Hydraulic QRC Quick Release Coupling With Single Check Valve to a variety of industries in various countries. Our consumers are pleased with the product because of its high quality and low cost.
Table of content
| Nominal Sizes | 6.3 – 38 mm |
| Type | Single check valve |
| Seals | NBR / FKM / EPDM |
| Connection mechanism | Push to connect |
| Working pressure | UPTO 250 bar |
| Burst Pressure | ≥ 4 × working pressure (as per ISO 7241) |
| Interchangeability | Can be interchanged with QRC coupling complying with ISO 7241-A Standard |
| Media | Hydraulic oil / Water glycol / Phosphate esters |
| Flow Rate | Typically 12–120 L/min |
| Feature | Single Check QRC | Double Check QRC |
|---|---|---|
| Poppet Type | Spring loaded | Spring loaded on both halves |
| Seal Arrangement | Only one side | Both sides sealed |
| Disconnected State | Female side closed | Both sides closed |
| Flow Efficiency | Higher | Slightly lower |
| Cost | Lower | Higher |
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| Hydraulic Single QRC Valve, 3/8″ | US $12.18 per Piece | 44.74 AED per Piece | € 10.48 per Piece |
| 1/4″ With Manual Shut-Off Single check valve qrc | US $9.48 per piece | 34.82 AED per piece | € 8.15 per piece |
Single Check Valve Qrc
Stainless steel qrc single check valve
Quick Disconnect Couplings Single Check Valve
| Body Size | Connection Thread Size (inch) |
|---|---|
| 3/8″ | 3/8-19 |
| 1/2″ | 3/4 – 14 |
| 3/4″ | 3/4 – 14 |
| 1″ | 1 – 11 1/2 |
| 1/4″ | 1/8 – 27 |
| 1/4″ | 1/4 – 18 |
| 3/8″ | 3/8 – 18 |
| 1/2″ | 1/2 – 14 |
| 1/2″ | 7/8 – 14 |
| 1/2″ | 1 1/16 – 12 |
| 3/4″ | 1 1/16 – 12 |
| 1″ | 1 5/16 – 12 |
| 3/8″ | 9/16 – 18 |
| 1/2″ | 3/4 – 16 |
- One way sealing
- Free flow male
- Ease of connection
- Minimal pressure drop
- No cross-contamination
- Low flow resistance
