Biggest High pressure sample cylinders Manufacturer in India
Sampling cylinders are specialised containers used to collect, store, and transport gas or liquid samples. These cylinders are made to endure high pressures and harsh temperatures, and they are utilised in a variety of industrial applications such as oil and gas, chemical processing, and environmental monitoring.
A gas sampling cylinder is a container designed to hold high-pressure samples of compressed gases. These cylinders are commonly made up of aluminium or stainless steel and come in a wide range of diameters and capacities. Spun sampling cylinders are created using a spinning technique that results in a one-piece, seamless cylinder. These stainless steel cylinders are primarily utilised in high purity gas and chemical applications.
Supplier of double ended sample cylinder in Mumbai
The type of sample being collected, the pressure and temperature of the sample, and the specific needs of your application all influence the selection of a sampling cylinder. Contact a sampling cylinder supplier or specialist to ensure you choose the correct cylinder for your needs.
Table of content
- Sampling cylinders specification
- Types of Sample cylinder
- High pressure sample cylinders dimensions

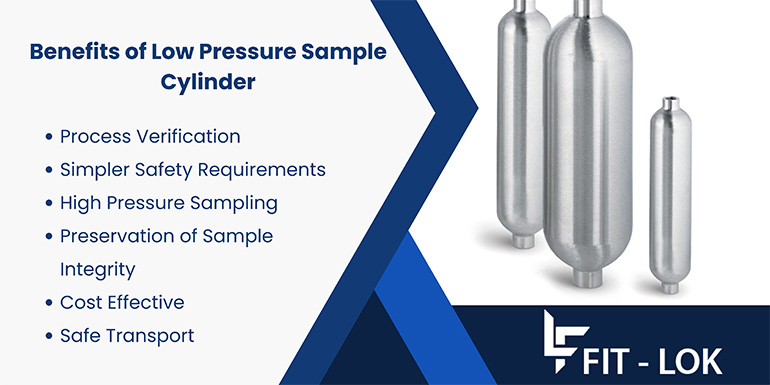

- Benefits of Low pressure sample cylinder
- Double Ended High Pressure Sampling Cylinders Dimensions
- Double Ended Low Pressure Sampling Cylinders Dimensions
- What is the testing method for Sampling Cylinders?
- Sampling cylinder Application
| PIPE SIZE | 2″ NB TO 8″ NB |
| SAMPLING CYLINDERS CAPACITY | 150 CC TO 1500 CC |
| INTERNAL VOLUME | 40 TO 4000 CM3 (1 GAL) |
| THREADS | NPT, BSPP, BSPT |
| CONNECTION | THREADED, SOCKET WELD END |
| SAMPLING CYLINDERS TYPES | DOUBLE ENDED, SINGLE ENDED, MINIATURE, FLAT END |
| PRESSURE RATING | UPTO 6000 PSI |
| SAMPLING CYLINDERS BODY TYPE | SEAMLESS PIPE |
| MATERIAL | SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, DUPLEX, INCONEL, SUPER DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L & TITANIUM, ALL OTHER ALLOYS |
Sampling cylinders
High pressure sample cylinders
Double ended sample cylinder
| Sr. No. | Sampling Cylinders Weight Kgs | Length (MM) | Volume (ML) | Diameter (MM) |
|---|---|---|---|---|
| 1 | 1.5 | 300 | 500 | 89 |
| 2 | 1.9 | 400 | 1000 | 89 |
| 3 | 1.5 | 500 | 1500 | 89 |
| 4 | 1.9 | 570 | 2000 | 89 |
| 5 | 1.5 | 670 | 2500 | 89 |
| Capacity (CC) | End Connection | Length XDiameter | Pressure Rating | |
|---|---|---|---|---|
| (Bar) | psi | |||
| 100 | ¼” NPT F | 210 X 48.3 | 125 | 1800 |
| 300 | ¼” NPT F | 240 X 60.5 | 150 | 2150 |
| 500 | ¼” NPT F | 280 X 60.5 | 200 | 2850 |
| 500 | 1/2″ NPT F | 280 X 60.5 | 200 | 2850 |
| 500 | ¼” NPT F | 510 X 48.5 | 350 | 5000 |
| 1000 | ¼” NPT F | 275 X 88.9 | 350 | 5000 |
| 1000 | 1/2″ NPT F | 275 X 88.9 | 350 | 5000 |
| Capacity (CC) | End Connection | Length XDiameter | Pressure Rating | |
|---|---|---|---|---|
| (Bar) | psi | |||
| 100 | ¼” NPT F | 210 X 48.3 | 20 | 300 |
| 300 | ¼” NPT F | 240 X 60.5 | 20 | 300 |
| 500 | ¼” NPT F | 280 X 60.5 | 20 | 300 |
| 500 | 1/2” NPT F | 280 X 60.5 | 20 | 300 |
| 500 | ¼” NPT F | 510 X 48.5 | 20 | 300 |
| 1000 | ¼” NPT F | 275 X 88.9 | 20 | 300 |
| 1000 | 1/2” NPT F | 275 X 88.9 | 20 | 300 |
Hydro Testing with water performed on sampling cylinders. We do these testing for every cylinders.
- Oil & Gas Industry
- Chemical Plants
- Pharmaceutical Industry
- Refineries
- LPG Sampling
- Environmental Monitoring
- Petrochemical
