Monel Tube Fittings

One of the best Nickel 400 Male Run Tee manufacturer in India

Monel 400 tube fittings

Monel 400 tube fittings Specification

Standards	ASTM B564 / ASME SB564
Sizes	1/8″ to 2″
Pressure Rating	3000 Psi 6000 Psi 10000 Psi
Connection Types	Instrument Pipe Fittings Tube to Union Tube to Female Accessories Tube to Male
Test & Certification	ISO 15156 and MR0103 EN 10204 3.1 / 3.2 NACE MR0175
Thread Standards	ASME B1.20.1 (NPT) / ISO 228/1 (BSPP) / ISO 7/1 (BSPT)
Temperature Range	−196 °C to +480 °C
Threads	BSPT BSPP NPT
Ends	Welding JIC Threaded

Types of Monel compression fittings

UNS N04400 high pressure compression fittings

Nickel Alloy 400 ferrule fittings

Nickel 400 male connector

Monel Grade 400 hydraulic fittings

DIN 2.4360 flare fittings

ASME SB 564 UNS N04400 single ferrule fittings

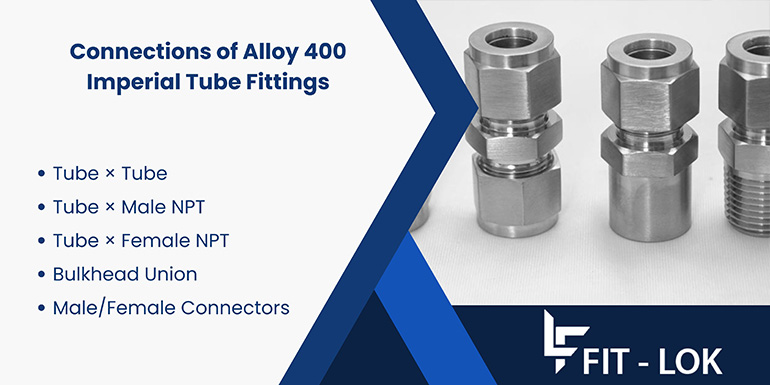

Connections of Alloy 400 Imperial Tube Fittings

Nickel 400 Flare Fittings chemical composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

ASTM B564 UNS N04400 bulkhead union mechanical properties

Element	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	550 MPa	240 MPa	40 %

UNS N04400 JIC Fittings equivalent grade

STANDARD	WNR	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Physical Properties of EN 2.4360 flare fittings

Density	Modulus of elasticity	Poisson’s ratio	Melting Point
8.8 gm/cm3	179 GPa	0.32	1300 °C – 1350 °C

Size chart of Nickel Alloy 400 ferrule fittings

Nominal Size of Thread Designation	Outside Diameter (O.D) in Inch	Outside Diameter (O.D.) Actual	Thread Per inch
Inch	Outside Diameter (O.D) in Inch	Inch	BSP	NPT
1/16	5/16″	0.3125	28	27
1/8	13/32″	0.405	28	27
1/4	35/64″	0.540	19	18
1/2	27/32″	0.840	14	14
3/8	43/64″	0.675	19	18
3/4	1-3/64″	1.050	14	14
1	1-5/16″	1.315	11	11-1/2
1-1/4	1-21/32″	1.660	11	11-1/2
1-1/2	1-29/32″	1.900	11	11-1/2
2	2-3/8″	2.375	11	8
2-1/2	2-7/8″	2.875	11	8
3	3-1/2″	3.5	11	8
3-1/2	4″	4.0	11	8
4	4-1/2″	4.5	11	8
5	5-5/8″	5.563	11	8
6	6-5/8″	6.625	11	8

Nickel 400 male connector Pressure rating

Monel 400 Instrumentation fittings Price list

Product	Price in USD (Pcs)	Price in Dirham (Pcs)	Price in Euro (Pcs)
1/4 in. Tube O.D. x 1/4 in. Bulkhead Union, Monel 400	US $16.24	59.64 AED	€ 14.11
1/2 in. Tube O.D. x 1/2 in. AN Bulkhead Union, Alloy 400	US $21.67	79.58 AED	€ 18.83

HSN Code of ASME SB 564 UNS N04400 ferrule fittings

HSN Code	75072000

DIN 2.4360 Male Branch Tee Dimensions

TUBE OD IN	PIPE SIZE NPT	B	A	D	C	F	E	H	G	K	J
1/8	1/8	10	23.6	12.7	18.1	12	3	17.0	12	47.2	31.0
1/4	1/8	10	27.0	15.2	19.1	12	5	19.6	14	54.0	39.2
3/8	1/8	10	30.5	16.8	21.1	17	8	21.3	17	61.0	42.6
3/8	1/2	17	33.3	16.8	31.0	22	8	26.0	17	66.6	52.0
1/2	1/8	10	36.0	22.8	25.7	22	10	25.9	22	72.0	51.8
5/8	3/8	14	38.1	24.4	30.0	24	12	27.9	27	76.2	55.8
3/4	3/4	19	40.5	24.4	36.8	27	15	29.7	30	81.0	59.4
1	3/4	19	49.0	31.3	41.7	35	21	36.8	38	98.0	73.6

Applications of NW 4400 hydraulic fittings
