Biggest ISO 7241-b hydraulic coupling set manufacturer in India
ISO 7241 B series couplings are a type of hydraulic coupling that offers a secure, leak-free connection in high-pressure applications. They are designed to meet the criteria of the ISO 7241 B standard, ensuring compatibility with other ISO 7241 B couplings from any manufacturer. ISO 7241-1 series B couplers are widely used in hydraulic systems for machinery and equipment in a wide range of industries such as mining, construction, agriculture, and transportation. They are suited for applications that demand frequent connections and disconnections, as well as a secure and stable connection.
Are you looking for exporter of ISO 7241-b quick couplers
ISO 7241-B quick couplers are designed with a self-sealing valve that prevents fluid loss and assures a leak-free connection. ISO 7241-B hydraulic connection sets normally feature a male and female coupler that are designed to interconnect. These come in a variety of diameters and thread types, including 1/4 NPT. Quick disconnect according to ISO 7241-B. ISO 7241-1 series B couplers are intended to provide hydraulic systems with a dependable and efficient connection. They are commonly used at the end of hydraulic hoses, with ISO 7241-B male couplers connecting to female couplers.
Table of content
- ISO 7241 B Series Coupling Specification
- Different types of ISO 7241-B hydraulic coupling set
- ISO 7241 Series B Coupling Price list
- Dimensions of ISO 7241-B quick couplers
- Max and Min Operating Temperature of ISO 7241-B Coupling
- Features of ISO 7241-B hydraulic coupling set

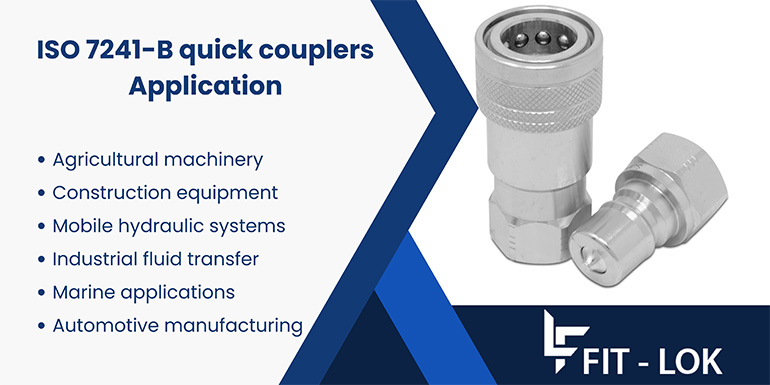

- ISO 7241-B quick couplers Application
| Size Range | 1/8″ to 4″ |
| Thread Types | NPT, BSPP, BSPT, JIC, Metric |
| Seals | NBR / FKM / EPDM |
| Connection mechanism | Manual push-pull sleeve |
| Pressure Rating | Up to 6000 PSI |
| Compatible Media | Hydraulic oil, Air, Water, Gas, Steam |
| Interchangeability | Can be interchanged with QRC coupling complying with ISO 7241 B Standard |
| Temperature range | Typically -40°C to 300°C |
ISO 7241 B Series Coupling
ISO 7241-b hydraulic coupling set
1/4 npt ISO 7241-b quick disconnect
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| 1/4″ BSP Parallel Female Coupler, ISO 7241-B | US $4.25 per Piece | 15.61 AED per Piece | € 3.66 per Piece |
| 1/2″ BSP Parallel Female Coupling, ISO 7241-B | US $10.58 per piece | 38.86 AED per piece | € 9.10 per piece |
| Body Size | Connection Thread Size (inch) |
|---|---|
| 3/8″ | 3/8-19 |
| 1/2″ | 3/4 – 14 |
| 3/4″ | 3/4 – 14 |
| 1″ | 1 – 11 1/2 |
| 1/4″ | 1/8 – 27 |
| 1/4″ | 1/4 – 18 |
| 3/8″ | 3/8 – 18 |
| 1/2″ | 1/2 – 14 |
| 1/2″ | 7/8 – 14 |
| 1/2″ | 1 1/16 – 12 |
| 3/4″ | 1 1/16 – 12 |
| 1″ | 1 5/16 – 12 |
| 3/8″ | 9/16 – 18 |
| 1/2″ | 3/4 – 16 |
| Seals | Minimum Operating Temperature | Maximum Operating Temperature |
|---|---|---|
| Nitrile (NBR) | -40°C. | +100°C |
| Viton | -25°C | +150°C |
- Operating Temperature: -40°C to 106°C
- Flow Rate: 12 GPM (45 LPM)
- Working Pressure (Coupled): 300 BAR (4350 PSI)
- Burst Pressure (Coupled): 1320 BAR (19140 PSI)
- Burst Pressure (Male): 1350 BAR (19575 PSI)
- Burst Pressure (Female): 1400 BAR (20300 PSI)
