Top notch ISO 5675 Agricultural Quick Coupling manufacturer in India
ISO 5675 couplers are a form of hydraulic coupling that allows you to connect and disconnect hydraulic hoses quickly and easily without the use of tools or specialist equipment. They are intended to comply with the standards of ISO 5675. ISO 5675 agricultural fast couplings are extensively used in agricultural machinery such as tractors and combines where hydraulic lines must be connected and disconnected quickly and easily.
ISO-5675 breakaway couplings are designed to separate under a specified load, reducing the risk of equipment damage and injury in the event of an unintentional draw away. They are frequently employed in situations where hydraulic lines are subjected to abrupt loads or impact forces, such as in mobile equipment. ISO 5675 coupler sets typically include a male and a female coupler that are designed to interconnect.
Leading stockist of ISO 5675 Couplers Sets in wide range of sizes
The ISO 5675-AG interchange coupler has a high flow capacity and a low pressure drop, ensuring efficient and reliable performance even in demanding conditions. It is intended to reduce fluid loss while also providing a leak-free connection between the coupler and nipple. ISO 5675 generic agricultural hydraulic quick connections are available in a variety of sizes and thread types to accommodate a variety of applications and are interchangeable with other ISO 5675 standards.
Table of content
- ISO 5675 Couplers Specification
- Different types of ISO 5675 Agricultural Quick Coupling
- ISO 5675 Couplers Price list
- ISO 5675 vs 7241 Coupler
- Dimensions of ISO 5675 Couplers Sets

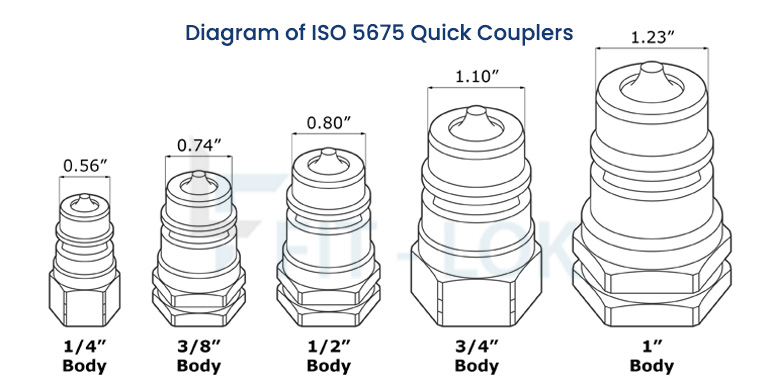

- Diagram of ISO 5675 quick couplers
- Technical data of 1/4 ISO 5675 Quick Connect Coupling
- Operating temperature range of ISO 5675 quick coupling
- Features of ISO 5675 Agricultural Quick Coupling

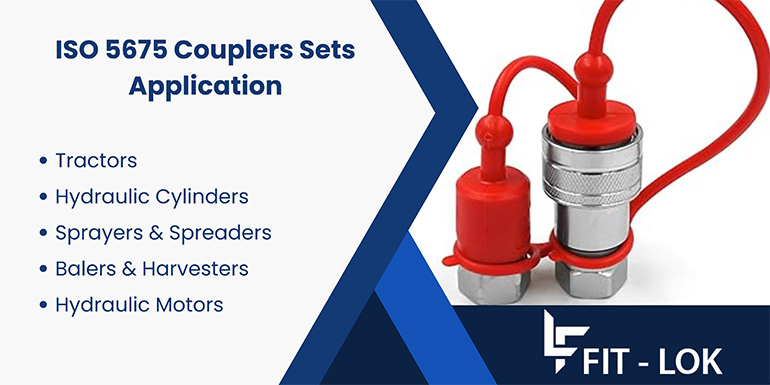

- ISO 5675 Couplers Sets Application
| Standard | ISO 5675 |
| Size | 1/4” TO 1″ |
| Threads | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| Flow Rate | 12 to 180 L/min |
| Max Working Pressure | 180 to 250 Bar |
| Burst Pressure | ≥ 1000 bar |
| Temperature Range | -25°C to +120°C |
| Seal | Nitrile, Viton, EPDM |
ISO 5675 Couplers
ISO 5675 Agricultural Quick Coupling
ISO-5675 breakaway couplings
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| NPT 1/4″ ISO 5675 AG Quick Coupling Set | US $5.50 per Piece | 20.20 AED per Piece | € 4.73 per Piece |
| BSPP 1/4″ ISO 5675 AG Quick Coupling Female Coupler | US $3.85 per piece | 14.14 AED per piece | € 3.31 per piece |
| Feature | ISO 5675 | ISO 7241 |
|---|---|---|
| Connection Type | Push to connect | Manual sleeve retract |
| Pressure Rating | Up to 250 bar | Up to 300 bar |
| Flow Rate | Moderate to high | Moderate |
| Durability | Rugged for outdoor | Good |
| Application | Agricultural machinery | Mobile equipment, construction |
| Body Size | Connection Thread Size (inch) |
|---|---|
| 3/8″ | 3/8-19 |
| 1/2″ | 3/4 – 14 |
| 3/4″ | 3/4 – 14 |
| 1″ | 1 – 11 1/2 |
| 1/4″ | 1/8 – 27 |
| 1/4″ | 1/4 – 18 |
| 3/8″ | 3/8 – 18 |
| 1/2″ | 1/2 – 14 |
| 1/2″ | 7/8 – 14 |
| 1/2″ | 1 1/16 – 12 |
| 3/4″ | 1 1/16 – 12 |
| 1″ | 1 5/16 – 12 |
| 3/8″ | 9/16 – 18 |
| 1/2″ | 3/4 – 16 |
| Nominal Flow Rate | 12 GPM |
|---|---|
| Max Flow Rate | 24 GPM |
| Pressure Rating | 3600 PSI |
| Burst Rating | 23,000 PSI |
| Operating temperature | -40 °F to 250 °F |
- Poppet Valve Design
- Conforms to ISO 5675 Standard
- High Working Pressure
- Low Fluid Loss
- Rugged and Durable Construction
- Compatibility and Interchangeability
- Bidirectional Flow
