We are leading ISO 16028 Flat Face Hydraulic Coupler manufacturer in India

ISO 16028 Coupler

When it comes to hydraulic connections, choosing the right coupler is crucial. This is where ISO 16028 couplers come in. These flat face quick couplers are designed to provide a reliable and leak-free connection for hydraulic systems in various industries. We are leading iso 16028 coupler manufacturers in India

ISO 16028 Couplers Advantages

  • Flat face iso 16028 quick couplers are meant to be simple to connect and disengage. As a result, they are appropriate for applications requiring frequent connections and disconnections.
  • Leak-Free Connections: The ISO 16028 Flat Face Hydraulic Coupler flat face design assures a leak-free connection. This is especially true in hydraulic systems, where leaks can result in system failure and costly repairs.
  • ISO 16028 coupling are comprised of high-quality materials designed to endure high pressure and temperature. As a result, they are suited for usage in hostile settings where other couplers can fail.
  • Interchangeability: ISO 16028 Flat-Face Quick Coupling are designed to be compatible with other ISO 16028 couplers. Couplers can be easily replaced or upgraded without having to rebuild the entire hydraulic system.

We are stockist and supplier of ISO 16028 quick coupler

How to use ISO 16028 Coupler Manufacturer in India

  • Quality: Seek for manufacturers who employ high-quality materials and have a track record of creating dependable and long-lasting couplers.
  • Price: Compare prices from different manufacturers to get the best deal. Keep in mind, however, that the lowest option is not always the best.
  • Seek for manufacturers who provide good customer service and support. This is especially vital if you require installation assistance or have any troubles with the couplers.
  • Check to see if the manufacturer is ISO 9001 certified. This ensures that the firm has in place a quality management system that complies with international standards.

ISO 16028 Coupler Specification

Size Range 1/8″ to 4″
Type Flat face
Thread Types NPT, BSPP, BSPT, JIC, Metric
Seals NBR / FKM / EPDM
Connection mechanism Manual push-pull sleeve
Pressure Rating 10 MPa to 31.5 MPa
Compatible Media Hydraulic oil, Air, Water, Gas, Steam
Flow Rate 12 to 155 L/min
Temperature range -20°C to +100°C

Different types of ISO 16028 Flat Face Hydraulic Coupler

ISO 16028 Coupler

ISO 16028 Coupler

ISO 16028 Flat Face Hydraulic Coupler

ISO 16028 Flat Face Hydraulic Coupler

ISO 16028 quick coupler

ISO 16028 quick coupler

ISO 16028 coupler price

Product Price in USD Price in Dirham Price in Euro
3/8″ ISO 16028 Flat Face Coupler US $7.49 per Piece 27.51 AED per Piece € 6.44 per Piece
1″ ISO 16028 Flat Face Coupler US $15.83 per piece 58.14 AED per piece € 13.62 per piece

Dimensions of ISO 16028 quick coupler

Body Size Connection Thread Size (inch)
3/8″ 3/8-19
1/2″ 3/4 – 14
3/4″ 3/4 – 14
1″ 1 – 11 1/2
1/4″ 1/8 – 27
1/4″ 1/4 – 18
3/8″ 3/8 – 18
1/2″ 1/2 – 14
1/2″ 7/8 – 14
1/2″ 1 1/16 – 12
3/4″ 1 1/16 – 12
1″ 1 5/16 – 12
3/8″ 9/16 – 18
1/2″ 3/4 – 16

ISO 16028 flat face hydraulic coupler Technical specification

Dash Size Size (mm) Spillage (ml) Flow Rate (l/min) Force to connect (N) Working Pressure Burst pressure (MPa)
Male Female Male + Female
2 3.2 0.001 12 105 35 MPa 170 140 180
4 6.3 0.006 25 110 35 MPa 170 140 180
6 10 0.008 50 150 35 MPa 170 140 170
8 12.5 0.01 110 210 35 MPa 140 140 170
10 16 0.02 125 205 35 MPa 140 140 140
12 19 0.02 160 215 35 MPa 140 140 140
16 25 0.03 230 280 35 MPa 140 140 170
20 31.5 0.03 390 350 35 MPa 105 105 140

Maximum Operating Pressure and Temperature of ISO 16028 quick coupler

Maximum Operating Pressure 5000.0 psi
Maximum Operating Temperature 250 °F

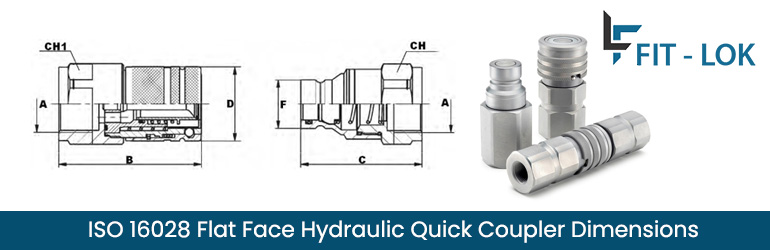

ISO 16028 Flat Face Hydraulic Quick Coupler Dimensions

ISO 16028 Flat Face Hydraulic Quick Coupler Dimensions

DN A CH1 (mm) CH (mm) B (mm) ØD (mm) L (mm) C (mm) ØF (mm)
7 1/4″ 27 22 54 28 90.5 48 16.2
9 3/8″ 30 27 69 32 113.5 60 19.8
9 1/2″ 30 27 75 32 121.5 63 19.8
13 1/2″ 36 36 83.5 38 138 71 24.5
13 3/4″ 36 36 83.5 38 138 71 24.5
15 3/4″ 41 36 84 42 140 73 26.95
17 3/4″ 46 46 98.5 47 161 84 30
17 1″ 46 46 98.5 47 161 84 30
25 1.1/4″ 55 55 106 55 174 90 36.1
32 1.1/2″ 70 70 119 79 210 120 57
40 2″ 70 70 118 79 210 114

Features of ISO 16028 Flat Face Hydraulic Coupler

  • Minimal fluid loss
  • Interchangeability
  • Locking Mechanism
  • Size & Flow Options
  • High pressure rating
  • Less contamination

ISO 16028 quick coupler Application

  • Construction machinery
  • Industrial hydraulics
  • Agricultural equipment
  • Forestry machinery
  • Railway
  • Hydraulic pump systems

How to maintain ISO 16028 flat-face couplers

  • Keep-Couplers Clean
  • Inspect Regularly
  • Lubricate Carefully
  • Proper Connection & Disconnection
  • Seal Replacement

Why buy ISO 16028 flat face couplings from Fit-lok?

buy ISO 16028 flat face couplings from Fit-lok
