- Inconel needle valve specification
- Inconel 625 needle valve price list
- Inconel instrument needle valve chemical composition
- Inconel alloy angle needle valve Mechanical properties
- Equivalent grade of Inconel socket weld needle valves
- Pressure Rating Of Inconel 600 needle valve

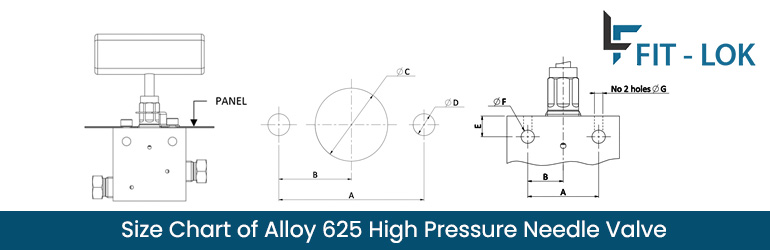

- Size Chart of Alloy 625 high pressure needle valve
- Ni 625 hydraulic needle valve Diagram
- Inconel needle valve Types
- Thermal Properties of a Alloy 600 cryogenic needle valve
- Advantages of Inconel 601 air needle valve
| sizes | 1/4″ to 1″ (Female / Female BSP and BSPT), 3/8″ to 1″ (Female / Female NPT) and 1/4″ to 1/2″ (Male / Female BSPP). |
| Temperature range: | -20°C to 230°C. |
| Operator | Bar, hand operated. |
| Pressure rating: | 6000 PSI. |
| Flow Rate | .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv |
| Applicable Standard |
|
| Approvals |
|
| Connection |
|
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| 3/8″ Inconel 625 Male x Female Needle Valve, 3000 psi | 13.42 | 49.28 | 11.65 |
| 1/2″ Alloy 625 Female x Female Needle Valve, 3000 psi | 21.68 | 79.62 | 18.83 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
| STANDARD | WNR | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
| Size range | Pressure Rating (PSI) |
|---|---|
| 1/4″ to 1″ | 15k |
| 1/4″ to 1″ | 20k |
| 1/4″ to 9/16″ | 30k |
| 1/4″ to 9/16″ | 60k |
| Tube connection size |
DIMENSIONS mm (inches) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | ØC min. | ØD min. | E | ØF | ØG | |
| 1/4″ NPT | 32 (1.26″) | 16 (0.63″) | 17 (0.67″) | 6 (0.24″) | 9.4 (0.37″) | 6 (0.24″) | #10-24 UNC |
| 3/8″ NPT | 32 (1.26″) | 16 (0.63″) | 17 (0.67″) | 6 (0.24″) | 9.4 (0.37″) | 6 (0.24″) | #10-24 UNC |
| 1/2″ NPT | 35 (1.38″) | 17.5 (0.69″) | 21.5 (0.85″) | 7.1 (0.28″) | 9.4 (0.37″) | 9 (0.35″) | 1/4″-20 UNC |
| 3/4″ NPT | 44.7 (1.76″) | 22.35 (0.88″) | 26.5 (1.04″) | 7.1 (0.28″) | 16 (0.63″) | 11.5 (0.45″) | 1/4″-20 UNC |
| 1″ NPT | 70 (2.76″) | 35 (1.38″) | 33 (1.3″) | 7.1 (0.28″) | 17.4 (0.69″) | 14 (0.55″) | 1/4″-20 UNC |
Alloy 600 Compression Needle Valve
Inconel 625 Instrument Needle Valve
Nickel 601 Hydraulic Needle Valve
DIN 2.4856 Female Thread Needle Valve
UNS N07718 Flow Control Needle Valves
Inconel 600 High Pressure Needle Valve
| Properties | Metric |
|---|---|
| Thermal expansion co-efficient | 12.8 µm/m°C |
| Thermal conductivity | 9.70W/mK |
