Trusted Alloy 601 male elbow manufacturer in India
We are one of the leading ASME SB564 Inconel 601 fittings manufacturer in India, who supplies Inconel 601 instrument fittings for 1000°C furnace applications in wide range of sizes and pressure rating. We always have ready stock of Alloy 601 material and can manufacture and dispatch custom instrumentation fittings within a 4 weeks.
Refer dimensions and specification chart of UNS N06601 double ferrule fittings.
Table of content
- Inconel 601 tube fittings Specification
- Types of Inconel 601 compression fittings
- Inconel Alloy 601 instrumentation fittings chemical composition
- Alloy 601 high pressure compression fittings mechanical composition
- ASTM B564 UNS N06601 ferrule fittings equivalent grade
- Physical Properties of DIN 2.4851 Twin Ferrule Fittings
- Inconel 601 instrumentation fittings Price list
- Thread Size chart of Nickel 601 SAE 45° Flare fittings
- 2.4851 Inconel male connector Pressure rating

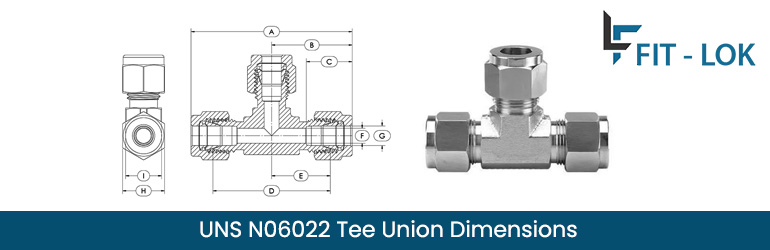

- Dimensions of Alloy 601 Bulkhead Union
- Heat treatment of ASTM B564 UNS N06601 Imperial Tube Fittings

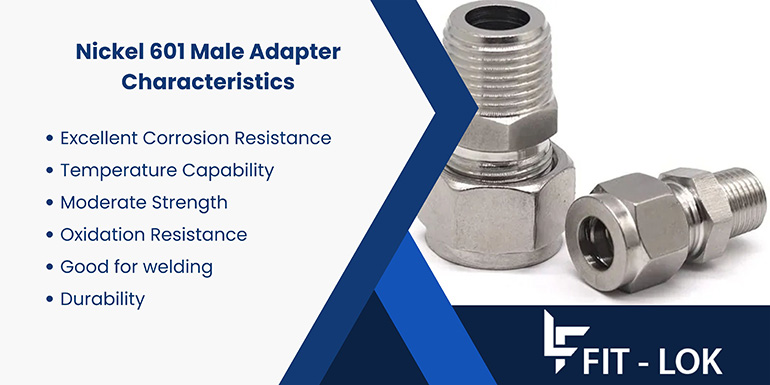

- Nickel 601 Male Adapter Characteristics
- Inconel 601 vs 625 for high-temperature instrumentation
| Standards | ASTM B564 / ASME SB564 |
|---|---|
| Sizes | 1/8″ to 2″ |
| Connection Types |
|
| Ends |
|
| Thread Standards | ASME B1.20.1 (NPT) / ISO 228/1 (BSPP) / ISO 7/1 (BSPT) |
| Pressure Rating |
|
| Temperature Range | up to ~1200 °C |
| Threads |
|
| Test & Certification |
|
Alloy Inconel 601 single ferrule fittings
UNS N06601 double ferrule fittings
Inconel 601 hydraulic fittings
Nickel Alloy 601 pneumatic fittings
2.4856 Inconel male connector
Inconel 601 bulkhead union
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Refer Tensile and yield strength of Inconel 601 hydraulic fittings and Nickel 601 pneumatic fittings.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | 550 MPa | 205 MPa | 30 % |
| STANDARD | WNR | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
|---|---|---|---|---|
| 8.11g/cm³ | 1411 °C | 13.75 μm/m °C (20 – 100 °C) | 81.2 kN/mm² | 206.5 kN/mm² |
Get lastet price list of 2.4856 Inconel male connector from manufacturer in India.
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 1/8 in. Tube x 1/8 in. Pipe Male Pipe Weld Elbow, Inconel 601 | US $17.12 | 62.87 AED | € 14.90 |
| 3/8 in. Tube x 1/4 in. Pipe Male Weld Elbow, Alloy 601 | US $23.60 | 86.67 AED | € 20.54 |
Stockist and exporter of Inconel 601 bulkhead union and Alloy 601 compression tube fittings
| Inch size | Dash size | Thread Size | Female thread O.D (in) | Male Thread O.D. (in) | ||
|---|---|---|---|---|---|---|
| 1⁄8 | -2 | 5⁄16 – 24 | 9⁄32 | 0.27 | 5⁄16 | 0.31 |
| 3⁄16 | -3 | 3⁄8 – 24 | 11⁄32 | 0.34 | 3⁄8 | 0.38 |
| 1⁄4 | -4 | 7⁄16 – 20 | 13⁄32 | 0.39 | 7⁄16 | 0.44 |
| 5⁄16 | -5 | 1⁄2 – 20 | 15⁄32 | 0.45 | 1⁄2 | 0.5 |
| 3⁄8 | -6 | 5⁄8 – 18 | 9⁄16 | 0.57 | 5⁄8 | 0.63 |
| 1⁄2 | -8 | 3⁄4 – 16 | 11⁄16 | 0.69 | 3⁄4 | 0.75 |
| 5⁄8 | -10 | 7⁄8 – 14 | 13⁄16 | 0.81 | 7⁄8 | 0.88 |
| 3⁄4 | -12 | 1 1⁄16 – 14 | 1 | 0.99 | 11⁄16 | 1.06 |
| 7⁄8 | -14 | 1 1⁄4 – 12 | 1 5⁄32 | 1.16 | 1 1⁄4 | 1.25 |
| 1 | -16 | 1 3⁄8 – 12 | 1 9⁄32 | 1.29 | 1 3⁄8 | 1.38 |
| Size | Pressure Rating |
|---|---|
| 1/16″ | 11000 psig |
| 1/8″ | 10000 psig |
| 1/4″ | 8000 psig |
| 2″ | 3900 psig |
| Tube O.D. | B (MM) | A (MM) | D (MM) | H (MM) | F (MM) | E (MM) | G (MM) | Maxpanel Thick | Panelhole Size |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 26.0 | 57.7 | 15.2 | 42.9 | 17 | 5 | 14 | 10.2 | 11.5 |
| 5/16″ | 28.6 | 61.0 | 16.2 | 46.0 | 19 | 6 | 17 | 11.2 | 13.1 |
| 3/8 | 29.0 | 62.2 | 16.8 | 46.0 | 19 | 7 | 17 | 11.2 | 16.3 |
| 1/2 | 31.0 | 71.1 | 22.8 | 50.8 | 24 | 10 | 22 | 12.7 | 19.5 |
| 3/4 | 38.0 | 79.0 | 24.4 | 58.7 | 30 | 15 | 30 | 16.8 | 26.0 |
| 1 | 50.0 | 95.8 | 31.2 | 71.4 | 40 | 21 | 38 | 26.0 | 33.2 |
| Condition | Temperature | Cooling | Type | Time |
|---|---|---|---|---|
| Annealed or Spring Temper | 480 – 870 °C (900 – 1600 °F) | Air | Stress Relieve | 1hr |
| Property | Inconel 601 tube fittings | Inconel 625 instrumentation fittings |
|---|---|---|
| Strength | Moderate | High |
| Oxidation Resistance | Excellent | Good |
| Max Temp | 1200°C | ~1090°C |
| Ductility | Moderate | High |
| Corrosion Resistance | Good | Excellent |
