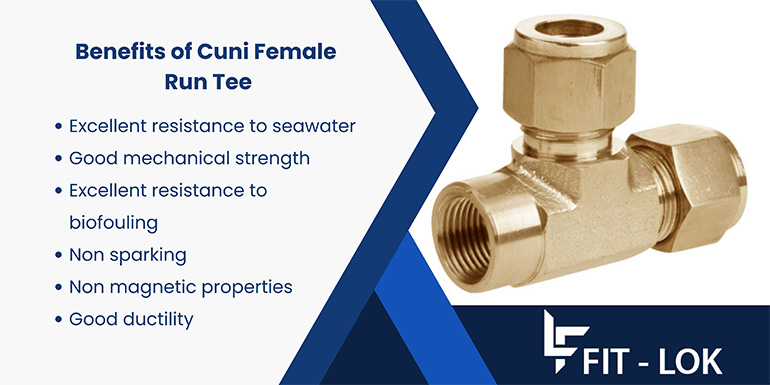

Make us your preferred Cuni Female Run Tee manufacturer in India
We take pride in offering Cupro nickel male connector that meet the stringent requirements of both instrumentation and industrial sectors.
Table of content
- Copper Nickel tube fittings Specification
- Types of Cuni compression fittings
- Cupro nickel male connector chemical composition
- Cu-ni instrumentation fittings mechanical composition
- Cupro Nickel ferrule fittings equivalent grade
- Size chart of Copper Nickel flare fittings
- Copper Nickel tube elbow Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |

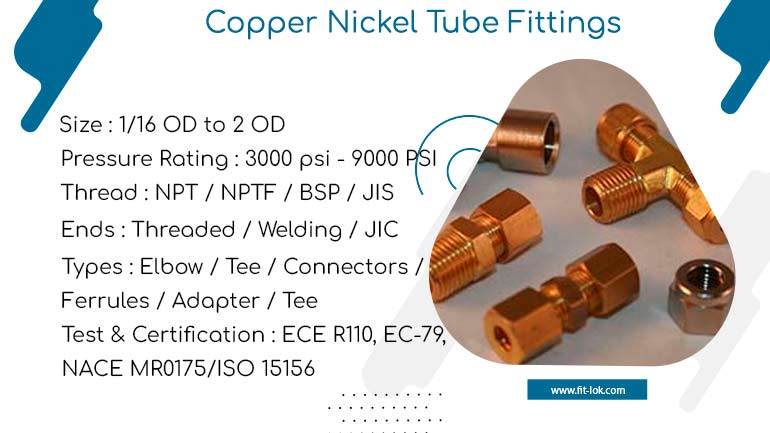

Copper Nickel tube fittings
Cuni compression fittings
Cupro nickel male connector
Cu-ni instrumentation fittings
Cupro Nickel ferrule fittings
Copper Nickel flare fittings
| Grade | Ni | Pb | Cu | Fe | Mn | Zn |
| 90/10 Copper Ni | 9-11 maximum | .05 maximum | 88.6 minimum | 1.8 maximum | 1.0 maximum | 1 maximum |
Source Cu-ni instrumentation fittings at competitive prices from the exporter.
| Density | Elongation | Tensile Strength | Melting Point | Yield Strength (0.2%Offset) |
| 8.1 g/cm3 | 30 % | Psi -80,000, MPa -551 | 1443 °C (2430 °F) | Psi – 35,000, MPa – 2410 |
| STANDARD | WERKSTOFF NR. | UNS |
| Copper Nickel 90/10 | 2.0872 | C70600 |
Cheapest rates for high-quality Cupro Nickel ferrule fittings in India.
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Dive into the magnetic and electrical properties of our Copper Nickel flare fittings for versatile applications.
Application of Copper Nickel flare fittings
- Dairy equipment
- Brewing equipment
- Aerospace industry
- Marine applications
- Automotive manufacturing
Packaging of Cupro nickel male connector
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
