Copper nickel manifold valve

Refer latest price list and dimensions of Cupro nickel 5 way manifold valve

Table of content

What Is Copper Nickel Manifold Valve?
Copper nickel manifold valve specification
Cupro nickel manifold control valve chemical composition
Cuni manifold tuning valve Mechanical properties
Equivalent grade of Copper nickel manifold valves
Pressure Rating Of Copper nickel 90/10 manifold valve
Size Chart of Cupro nickel 70/30 manifold check valve
CuNi 90/10 Pneumatic Manifold Block physical properties
Classification of Cupro Nickel 5 Way Manifold Valve
Advantages of DIN 2.0882 Instrument Manifold Valve
UNS C71500 Hydraulic Manifold Valve application

What Is Copper Nickel Manifold Valve?

Copper nickel manifold valves are designed to control, isolate and bleed fluids in corrosive environments. These valves have excellent corrosion resistance properties against seawater, brine, and chloride solutions. Cuni Manifold valves are comes in 2 Way, 3 Way and 5 Way configuration.

Copper nickel manifold valve specification

Size Range	1/8″ to 1″
Valve Types	2-way / 3-way / 5-way
Body Materials	Bar Stock / Forged
Connection Types	NPT / BSPT / BSPP
Pressure Ratings	Up to 15,000 psi
Standards	ASME B16.34 / MSS SP-99 / ISO 15156
Sealing	Graphite / PTFE / PEEK
Bonnet Type	Screwed bonnet / Union bonnet
Temperature Range	-50 °C to +300 °C
Mounting	Direct / Remote mounting
Surface Finish	Electropolished / passivated
Documentation	EN 10204 Type 3.1 MTC / Material certificates / NDT reports

Cupro nickel manifold control valve chemical composition

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu Ni 90/10	88.6 min	1.0 max	.05 max	9-11 max	1.8 max	1 max
Cu Ni 70/30	65.0 min	1 max	.05 max	29-33	0.4-1.0	1 max

Cuni manifold tuning valve Mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Equivalent grade of Copper nickel manifold valves

STANDARD	WNR	UNS
Copper Nickel 90/10	2.0872	C70600
Copper Nickel 70/30	2.0882	C71500

Pressure Rating Of Copper nickel 90/10 manifold valve

Valve Size / Material	Max Working Pressure
1/4″ – 1″ 90/10 Cu-Ni	3000–4000 psi (200–275 bar)
1/4″ – 1″ 70/30 Cu-Ni	4000–5000 psi (275–345 bar)
Temp Derating	Pressure decreases ~10–20% at 200–300 °C

Size Chart of Cupro nickel 70/30 manifold check valve

Connections	C	End Connection	LG	THK	Top/Bottom Connection	Width
4	1.38	HF9	5.26	1.5	HF6	2.63
6	1.38	HF9	7.76	1.5	HF6	2.63
8	1.38	HF9	10.26	1.5	HF6	2.63
10	1.38	HF9	12.76	1.5	HF6	2.63
14	1.38	HF9	17.76	1.5	HF6	2.63

CuNi 90/10 Pneumatic Manifold Block physical properties

Density	Elastic modulus	Poisson’s ratio	Shear modulus	Thermal conductivity
8.94 g/cm3	117 GPa	0.34	52 GPa	36 W/mK

Classification of Cupro Nickel 5 Way Manifold Valve

Copper Nickel 2-way Manifold Valve	2-way T Type 2-way R Type
Cupro Nickel 3-way Manifold Valve	3-way T Type 3-way R Type 3-way H Type
CuNi 5-way Manifold Valve	5-way T Type 5-way R Type 5-way H Type

Advantages of DIN 2.0882 Instrument Manifold Valve

Excellent corrosion resistance
Non magnetic
Good thermal conductivity
Erosion resistant
Medium pressure suitability
Easy fabrication and welding

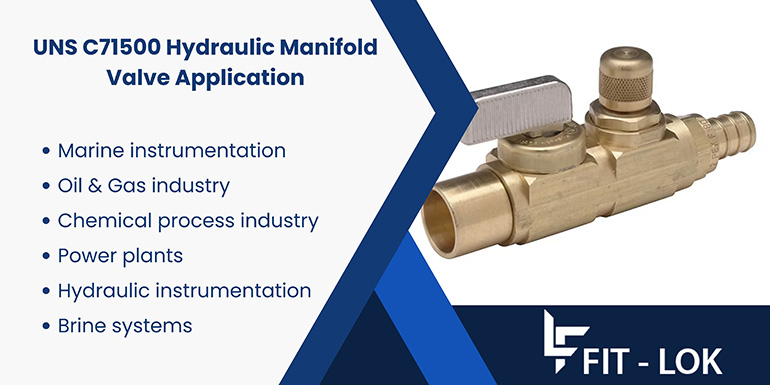

UNS C71500 Hydraulic Manifold Valve Application
