Leading ASTM b824 Cu threaded ball valve Manufacturer in India

Copper ball valve

Purchase Copper ball float valve at factory price

Table of content

Copper ball valve specification

Size 1/4″ to 4″
Valve Type 2 Way / 3 Way
Standards API 608 / ASME B16.34 / ISO 17292
Pressure Rating 3000 PSI / 6000 PSI / 10000 PSI / 15000 PSI
Bore Type Full Bore / Reduced Bore
End Connections Socket Weld / Female / Male NPT / Double Ferrule Compression
Flow Rate .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv
Surface Finish Pickled / Machined / Electropolished
Fire Safe Design API 607 / ISO 10497
Approvals
  • ANSI B16.11
  • MSS SP-110
  • ANSI B16.34
  • NACE Certified
  • API-598
  • ANSI B1.20.1

Chemical composition of CDA 110 Instrument Ball Valve

Element Copper Lead Nickel Zinc Iron Tin. Sn Aluminum Phosphorus Sulfur Antimony Silicon
Content (%) 73 16-2 ≤ 1.0 ≤ 1.20 ≤ 0.15 6-8 ≤ 0.0050 ≤ 0.50 ≤ 0.080 ≤ 0.80 ≤ 0.0050

Cu alloy Hydraulic Ball Valves mechanical properties

Tensile strength Yield strength Elongation Elastic modulus
170 MPa 83.0 MPa 12% 117 GPa

Pressure Rating Of Copper alloy ball valve

Pressure Rating Up to ~1000 psi
Temperature Range -50°C to +150°C
Standard ASTM B62 / B75 / B152

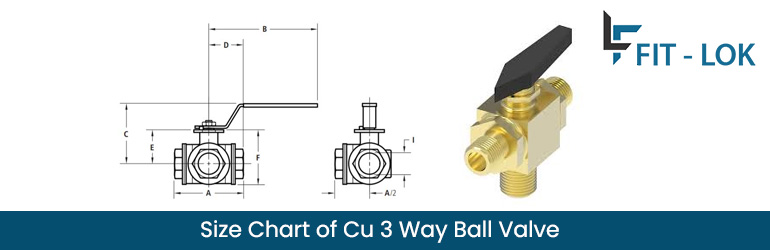

Size Chart of Cu 3 way ball valve

Size Chart of Cu 3 way ball valve

Size D A C B I F E Weight (Lbs)
1/4″ 1.42 2.84 2.44 5.12 0.25 2.18 1.54 2
3/8″ 1.42 2.84 2.44 5.12 0.375 2.18 1.54 2
1/2″ 1.63 3.27 2.52 5.12 0.5 2.5 1.62 2
3/4″ 1.95 3.9 3.23 6.5 0.75 2.95 1.93 3
1″ 2.2 4.41 3.5 6.5 1 3.45 2.17 5
1-1/4″ 2.46 4.93 3.86 8.08 1.25 3.97 2.48 6
1-1/2″ 2.93 5.87 4.25 8.08 1.5 4.66 2.92 11
2″ 3.42 6.85 5.52 12.81 2 5.88 3.66 20

Melting point of copper ball valve

Melting point 1085 °C

Pure Cu Ferrule Ball Valve features

Pure Cu Ferrule Ball Valve features

CDA 102 Cryogenic Ball Valves thermal properties

Properties Metric
Thermal expansion co-efficient 18.5 µm/m°C
Thermal conductivity 52 W/mK

Copper ball valve HS code

HS code 8481

Valve
